CATV WIFI5 AC1200 XPON ONU

FV-NX22C is a XPON ONU with CATV port and WIFI5 AC1200. To deliver triple-play services to the subscriber in Fiber-to-the-Home or Fiber-to-the-Premises application.
The FV-NX22C XPON ONT incorporates interoperability, key customers’ specific requirements and cost-efficiency.
It is equipped with ITU-T G.984 compliant 2.5G Downstream and 1.25G Upstream GPON interface.
The GPON ONT supports the full of services including ,video, CATV,WiFi and high speed internet access.
This ONT supports CATV Module,can convert CATV optical signals into electrical RF signals. Compliant with standard OMCI definition and China Mobile Intelligent Home Gateway Standard.
FV-NX22C GPON ONT is manageable at remote side and supports the full range FCAPS functions including supervision, monitoring and maintenance.

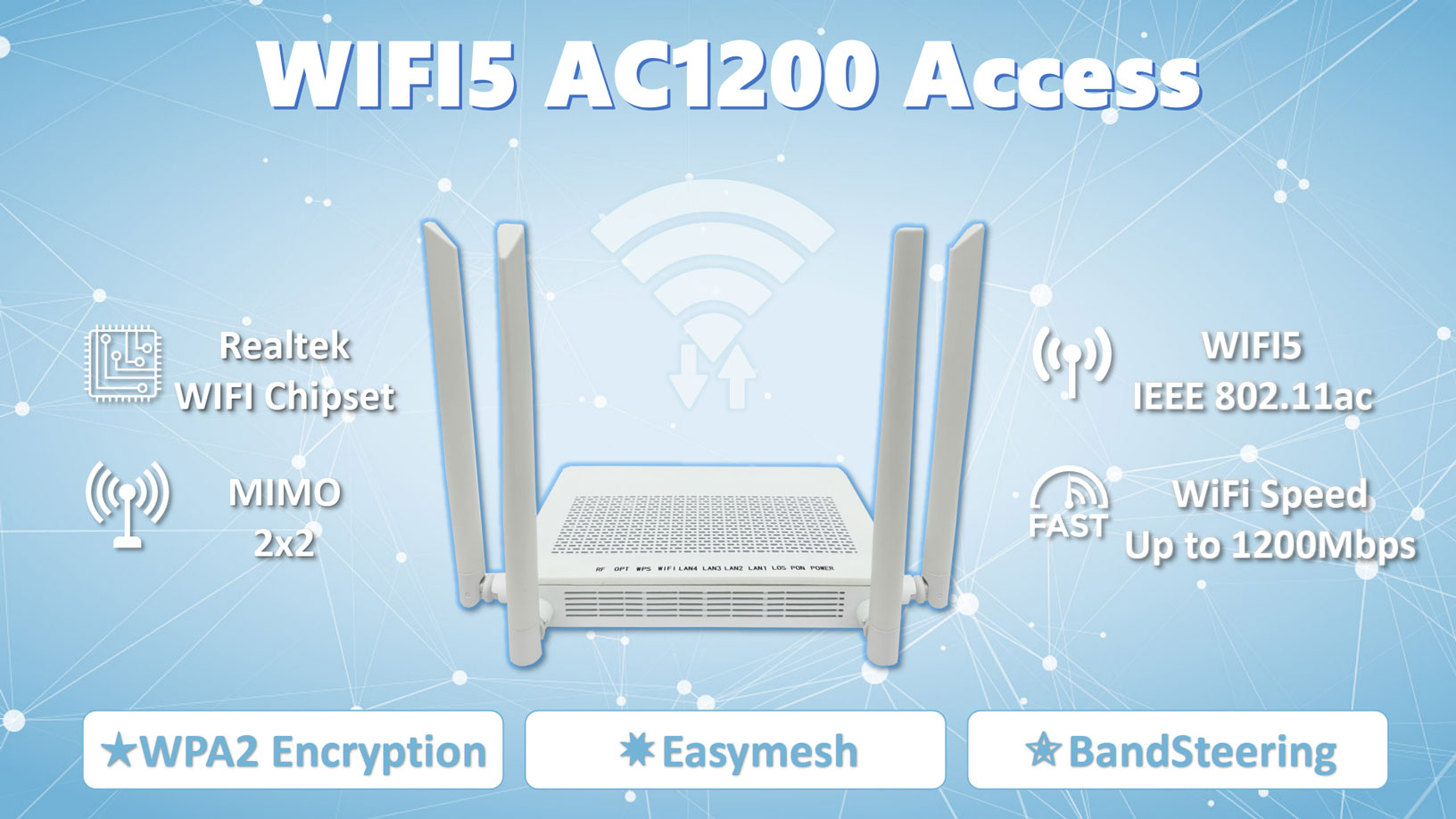

Our CATV WIFI5 XPON ONU adopts the Realtek WIFI chipset, which has good WIFI performance.
WIFI speed can reach up to 1200Mbps, MIMO 2x2, and supports WPA2 encryption technology.
In addition, the CATV WIFI5 XPON ONU also supports features such as easymesh and dual frequency integration.
At present, WIFI5 technology is very mature and its performance in all aspects is stable, suitable for various application scenarios.

The CATV function is also a highlight of this product and it supports to control CATV port on remote. At present, CATV business is widely used in many regions. Although mobile and computers have become popular worldwide, some people are still accustomed to watching various TV programs through television. Usually, the application and networking of CATV are as follows:

In summary, this CATV WIFI5 XPON ONU highly integrates CATV services, WIFI5 technology, data communication and other functions, and can meet various application needs of users. For users with voice communication needs, this ONU also supports IP phone access. Our company also has IP phone products.

Technical Specifications
Hardware Parameters
PON:  1* SC/APC or SC/UPC connector
LAN:  2* GE RJ45 ports
WiFi:  4* 5dBi external antennas
CATV:  1* RF port
Button: WiFi, WPS, Reset, Power On/Off
LED Status Indicators: Power, PON, LOS, LAN1-LAN2, WIFI, RF

Register
GPON: SN,Password, Loid authentication
EPON: MAC, Loid authentication
Flexible mapping between GEM Port and TCONT
SR-DBA and NSR-DBA

PON Parameters
GPON: ITU-T G.984/G.988 GPON standards,Class B+
EPON: IEEE802.ah, 1000BASE-PX20+ symmetric
GPON: 2.488Gbps/1.244Gbps downstream/upstream
EPON: 1.25Gbps downstream/upstream
Wavelength: Transmit: 1310nm, Receiver: 1490nm
Receiving Sensitivity : GPON: -28dBm, EPON: -27dBm
Saturated Power: GPON: -8dBm, EPON: -3dBm
Transmitting Power : GPON: 0.5～5dBm, EPON: 0～4dBm

Device Parameters
Power: 12V/1.5A DC
Power Consumption: <18W
Dimensions:184mm(L) x134.5mm(W) x27mm(H)
Weight: About 260g
Operating Temperature: -5°C to +40°C
Storage Temperature: -40°C to +85°C
Operating humidity: 10% to 90%(Non-condensing)

WiFi
4* 5dBi external antennas
IEEE 802.11a/b/g/n/ac
Speed: 1200Mbps@2.4GHz 574Mbps+5.8GHz 867Mbps
MIMO 2x2
4* SSIDs broadcast/hidden
WEP/WPA/WPA2 security
WiFi channel auto select

QoS
Flexible packet classification
SP/WRR/SP+WRR
Ingress rate limit
Egress shaping
WMM(WiFi Multi Media)

Network
PPPoE/DHCP/Static IP
NAT/NATP
Port forwarding
DNS server/client
DHCP server/client
IPV4, IPV6, IPV4/IPV6 dual stack
Static routing/Dynamic routing
IGMP transparent/proxy/snooping

Layer 2 Switch
IEEE 802.1q, VLAN transparent/tag/trunk
MAC address learning/limit
Port flow control

Security
Broadcast packet rate limit
MAC address/URL filtering
Multiple VPN(IPSec, PPTP) pass through Firewall
Broadcast/Unicast/Multicast attack protection
Dual image for firmware auto rollback

Management
OAM/OMCI/TR069 management
Local WEB GUI/Telnet management
Remote WEB GUI/Telnet management

CATV
CATV optical power range: 0~18dBm
Optical AGC control range: -5~-15dBm
RF frequency range: 47~1000
Working Wavelength: 1310nm, 1550nm
RF output signal level: >= 70dBuV@-15dBm
RF output reflection loss: >14dB
RF impedance: 75Ω
