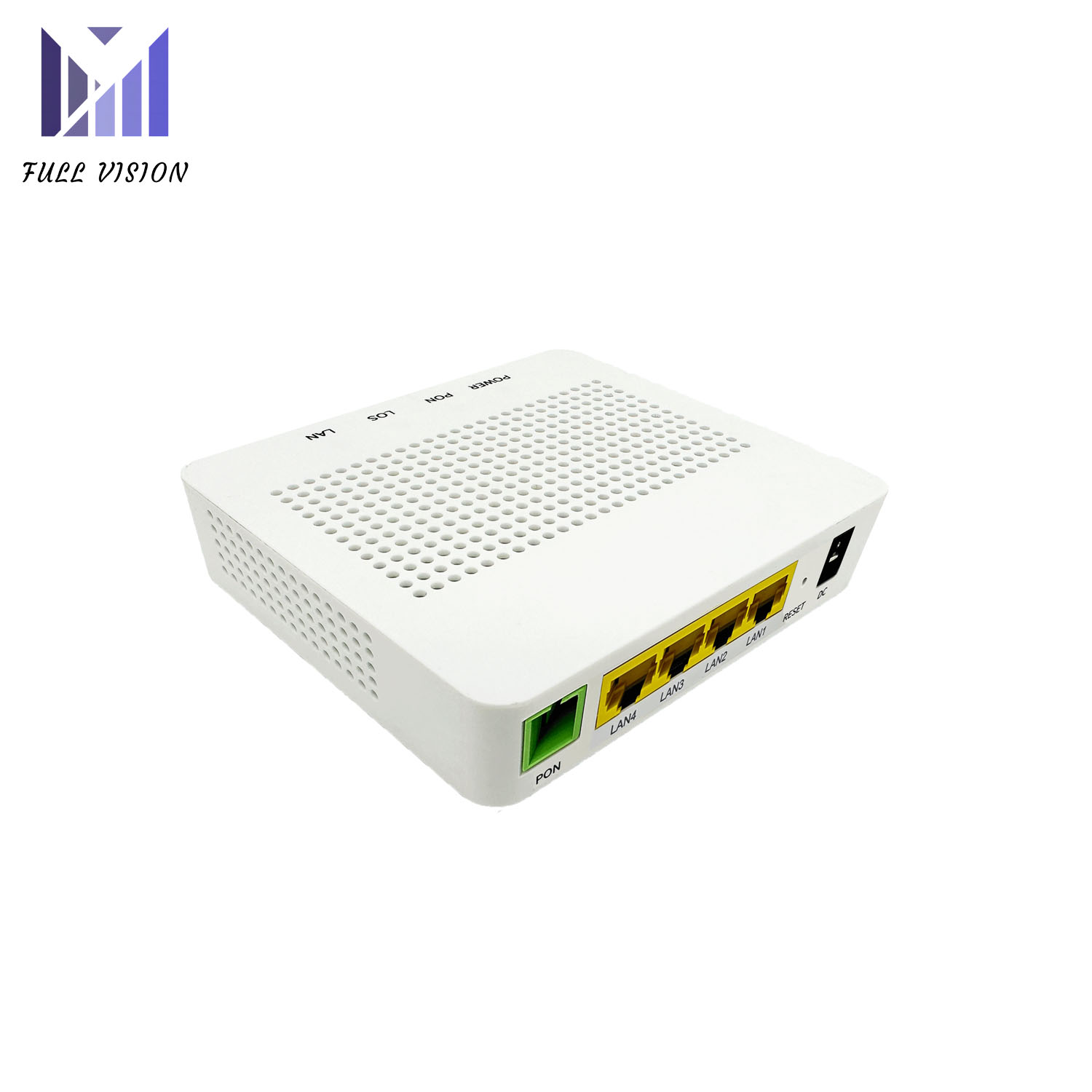

4GE XPON ONU

Model No.: FV-NX4

FV-NX4 is a dual mode ONU that supports EPON and GPON modes, and can automatically switch PON mode based on OLT mode. It has high-speed forwarding performance to ensure the stability of internet service.
This ONU fully meets the technical standards of ITU-T G984.x and can be compatible with OLTs  from different manufacturers.
The ONU supports Bridge mode, VLAN configuration, which could meets multiple services.
And it supports remote management feature, which is convenient for Internet Service Provider to manage and monitor.
It is a low-cost broadband optical network terminal suitable for FTTH solution. It can meet the different networking requirements of telecom, broadcasting operators and enterprise FTTH network construction, and provide users with a variety of rich, secure and efficient services.
Overview
FV-NX4 is a dual mode ONU that supports EPON and GPON modes, and can automatically switch PON mode based on OLT mode. It has high-speed forwarding performance to ensure the stability of internet service.
This ONU fully meets the technical standards of ITU-T G984.x and can be compatible with OLTs  from different manufacturers.
The ONU supports Bridge mode, VLAN configuration, which could meets multiple services.
And it supports remote management feature, which is convenient for Internet Service Provider to manage and monitor.
It is a low-cost broadband optical network terminal suitable for FTTH solution. It can meet the different networking requirements of telecom, broadcasting operators and enterprise FTTH network construction, and provide users with a variety of rich, secure and efficient services.

Hardware Parameters PON 1* SC/APC or SC/UPC connector
LAN 4* GE RJ45 ports
Button Reset, Power On/Off
LED Indicators Power, PON, LOS, LAN1-LAN4
Device parameters Power DC 12V /1.5A
Power Consumption <10W
Dimensions 180mm(L) x122mm(W) x28mm(H)
Weight About 250g
Operating Temperature -10°C to +45°C
Storage Temperature -40°C to +85°C
Operating humidity 5% to 95%(Non-condensing)


Technical Specifications

Hardware Parameters
PON:  1* SC/APC or SC/UPC connector
LAN:  4* GE RJ45 ports
Button: Reset, Power On/Off
LED Status Indicators: Power, PON, LOS, Internet, LAN1-4

Register
GPON: SN,Password, Loid authentication
EPON: MAC address, Loid authentication
Flexible mapping between GEM Port and TCONT
SR-DBA and NSR-DBA

PON Parameters
GPON: ITU-T G.984/G.988 GPON standards,Class B+
EPON: IEEE802.ah,1000BASE-PX20+ symmetric
GPON: 2.488Gbps/1.244Gbps downstream/upstream
EPON: 1.25Gbps downstream/upstream
Wavelength: Transmit: 1310nm, Receiver: 1490nm
Receiving Sensitivity : GPON: -28dBm, EPON: -27dBm
Saturated Power: GPON: -8dBm, EPON: -3dBm
Transmitting Power : GPON: 0.5～5dBm, EPON: 0～4dBm

Layer 2 Switch
IEEE 802.1q, VLAN transparent/tag/trunk
MAC address learning/limit
Port flow control

Device Parameters
Power: 12V/1.5A DC
Power Consumption: <10W
Dimensions:180mm(L) x122mm(W) x28mm(H)
Weight: About 250g
Operating Temperature: -10°C to +45°C
Storage Temperature: -40°C to +85°C
Operating humidity: 5% to 95%(Non-condensing)

Network
IPhost/ Remote management IP config
IGMP transparent/snooping

QoS
Flexible packet classification
SP/WRR/SP+WRR
Ingress rate limit
Egress shaping

Security
Broadcast packet rate limit
Loopback detection
STP
Broadcast/Multicast/Unicast attack protection
Dual image for firmware auto rollback

Management
OAM/OMCI management
Local WEB GUI/Telnet management
Remote WEB GUI/Telnet management
