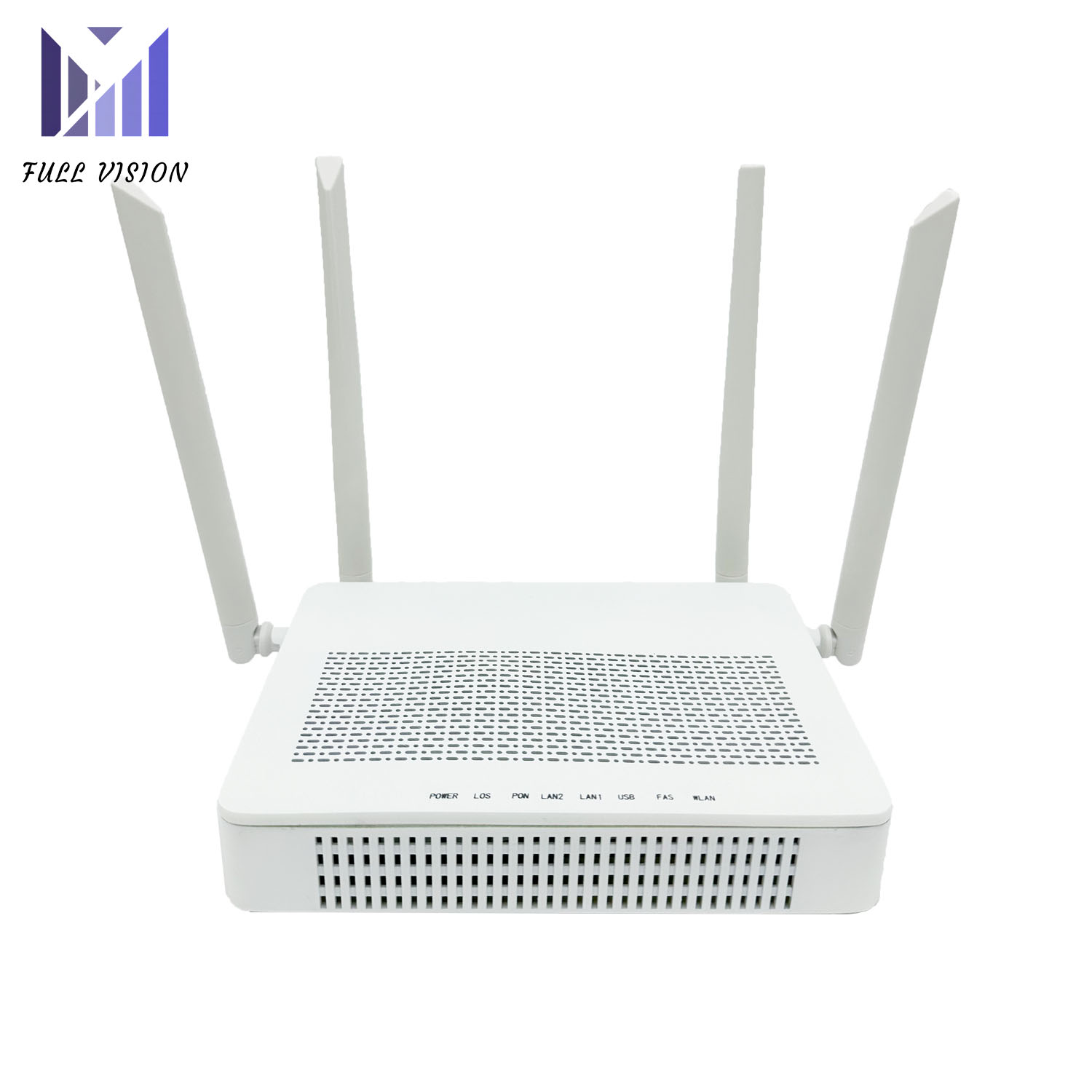

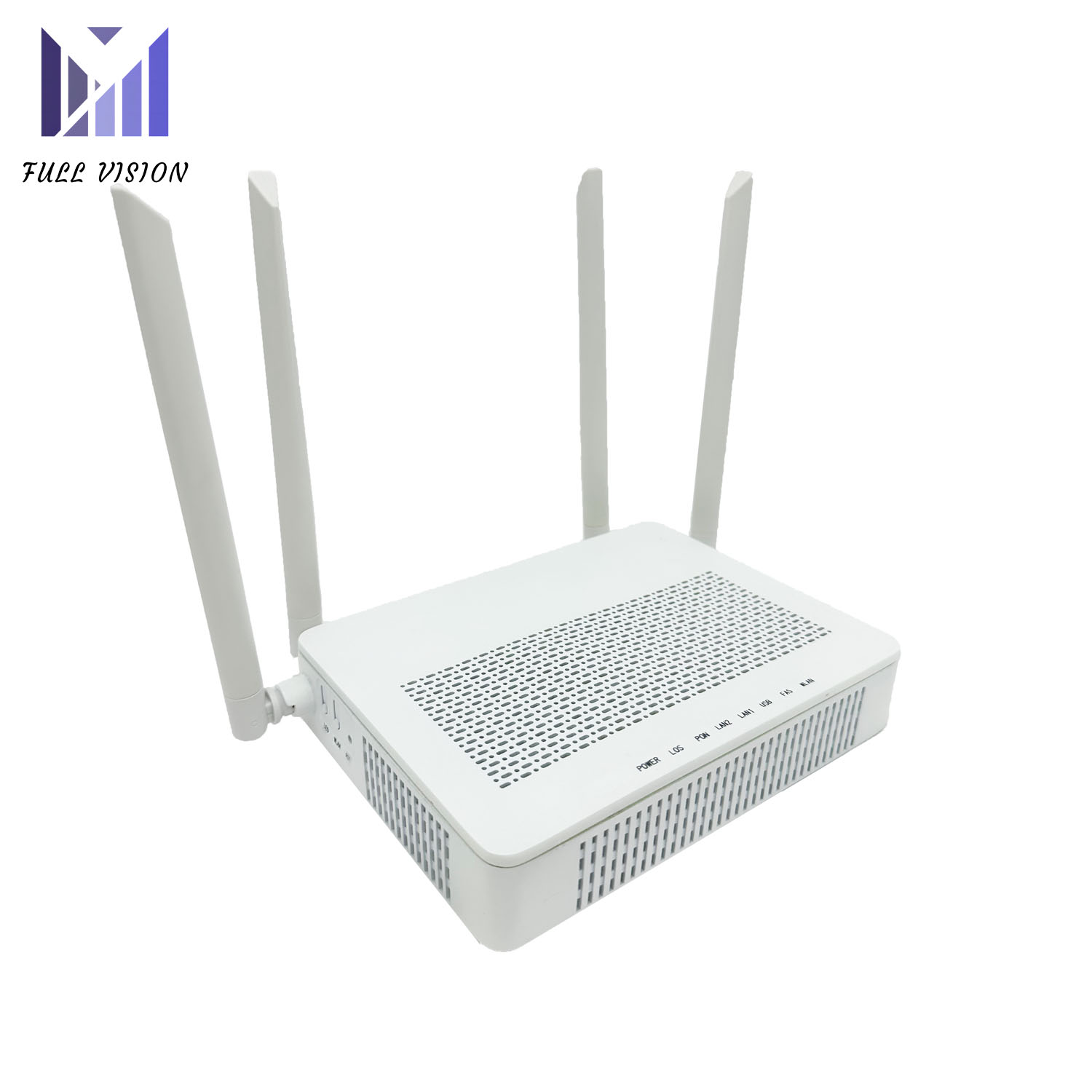

2GE+1POTS +WIFI5 AC1200 XPON ONT

Model No.:FV-NX32

● To deliver triple-play services to the subscriber in Fiber-to-the-Home or Fiber-to-the-Premises application.
● The FV-NX32 GPON ONT incorporates interoperability, key customers’ specific requirements and cost-efficiency.
● Equipped with ITU-T G.984 compliant 2.5G Downstream and 1.25G Upstream GPON interface.
● The GPON ONT supports the full of services including voice ,video, and high speed internet access.
● Compliant with standard OMCI definition and China Mobile Intelligent Home Gateway Standard.
● FV-NX32 GPON ONT is manageable at remote side and supports the full range FCAPS functions including supervision, monitoring and maintenance.

Overview

FV-NX32 XPON ONU is an ONU with  two gigabit Ethernet ports and a VoIP port, which supports EPON/GPON dual mode mode and meets the GPON/EPON standard protocol. The maximum uplink speed is 1.25G and the maximum downlink speed is 2.5G.
The XPON ONU supports bridging mode and routing mode, supports PPPoE, DHCP, and static IP functions, and can meet users‘ various internet access methods.
In addition, the GPON ONU also supports WIFI5 IEEE 802.11ac technology, with 4 external antennas, MIMO 2x2, WIFI speed rate is up to 1200Mbps.
This XPON ONU supports remote management, like OMCI, TR069, WAN access control and so on.
It is compatible with other OLT products from all manufacturer, such as HUAWEI, ZTE, FiberHome, Nokia......

Hardware Parameters PON 1* SC/APC or SC/UPC connector
LAN 2* GE RJ45 ports
FXS 1* RJ11 VoIP port
WIFI 4* 5dBi external antennas
Button WiFi, WPS, Reset, Power On/Off
LED Indicators Power, PON, LOS, Internet, FXS, WLAN, LAN1-LAN2, USB, CATV
Device parameters Power DC 12V /1.5A
Power Consumption <18W
Dimensions 184mm(L) x134.5mm(W) x27mm(H)
Weight About 260g
Operating Temperature -20°C to +50°C
Storage Temperature -40°C to +85°C
Operating humidity 10% to 90%(Non-condensing)



Technical Specifications

Hardware Parameters
PON:  1* SC/APC or SC/UPC connector
LAN:  2* GE RJ45 ports
WiFi:  4* 5dBi external antenna
FXS:  1* RJ11 VoIP port
Button: WiFi, WPS, Reset, Power On/Off
LED Status Indicators: Power, PON, LOS, Internet, Phone, LAN1-LAN2, 2.4G-WiFi, 5G-WiFi, WPS

Register
GPON: SN,Password, Loid authentication
EPON: MAC address, Loid authentication
Flexible mapping between GEM Port and TCONT
SR-DBA and NSR-DBA

PON Parameters
GPON: ITU-T G.984/G.988 GPON standards,Class B+
EPON: IEEE802.ah,1000BASE-PX20+ symmetric
GPON: 2.488Gbps/1.244Gbps downstream/upstream
EPON: 1.25Gbps downstream/upstream
Wavelength: Transmit: 1310nm, Receiver: 1490nm
Receiving Sensitivity : GPON: -28dBm, EPON: -27dBm
Saturated Power: GPON: -8dBm, EPON: -3dBm
Transmitting Power : GPON: 0.5～5dBm, EPON: 0～4dBm

Layer 2 Switch
IEEE 802.1q, VLAN transparent/tag/trunk
MAC address learning/limit
Port flow control

Device Parameters
Power:  DC12V 1.5A
Power Consumption: <18W
Dimensions: 184mm(L) x134.5mm(W) x27mm(H)
Weight: About 260g
Operating Temperature: -5°C to +40°C
Storage Temperature: -40°C to +85°C
Operating humidity: 10% to 95%(Non-condensing)

WiFi
4* 5dBi external antennas
IEEE 802.11a/b/g/n/ac
Speed 1200Mbps@2.4GHz 300Mbps+5.8GHz 867Mbps
MIMO 2x2
4* SSIDs broadcast/hidden
WEP/WPA/WPA2 security
WiFi channel auto select

VoIP
SIP/H.248
Codec: G.711, G.729, G.723
T.30, T.38, G.711 fax mode
Caller Identification/Call Waiting/Call Forwarding/Call Transfer/Call Hold/3-way Conference

Network
PPPoE/DHCP/Static IP
NAT/NATP
Port forwarding
DNS server/client
DHCP server/client
IPV4, IPV6, IPV4/IPV6 dual stack
Static routing/Dynamic routing
IGMP transparent/proxy/snooping

QoS
Flexible packet classification
SP/WRR/SP+WRR
Ingress rate limit
Egress shaping
WMM(WiFi Multi Media)

Security
Broadcast packet rate limit
MAC address/URL filtering
Multiple VPN(IPSec, PPTP) pass through Firewall
Broadcast/Unicast/Multicast attack protection
Dual image for firmware auto rollback

Management
OMCI/TR069 management
Local WEB GUI/Telnet management
Remote WEB GUI/Telnet management
