XPON ONT 4GE+1POTS+USB3.0+WIFI 6 AX3000
WIFI 6 AX3000 GPON ONU

Model No.:FV-NX55U

● To deliver triple-play services to the subscriber in Fiber-to-the-Home or Fiber-to-the Premises application.
● FV-NX55U  xPON&WIFI6 ONT incorporates interoperability, key customers’ specific requirements and cost-efficiency.
● Equipped with ITU-T G.984 compliant 2.5G Downstream and 1.25G Upstream GPON interface.
● The GPON ONT supports the full of services including voice ,video, and high speed internet access.
● FV-NX55U WIFI 6 AX3000 GPON ONT integrates GPON, routing, switching, security, WiFi6 (802.11a/b/g/n/ac/ax), VoIP, and USB functions, and supports security management, , and WEB graphical management,URL filtering, OAM/OMCI and TR069 network management while satisfying users‘ basic broadband Internet access.
● It greatly facilitates the network management and maintenance of network administrators.
● Compliant with standard OMCI definition and China Mobile Intelligent Home Gateway Standard.
● FV-NX55U WIFI 6 AX3000 GPON ONT is manageable at remote side and supports the full range FCAPS functions including supervision, monitoring and maintenance.

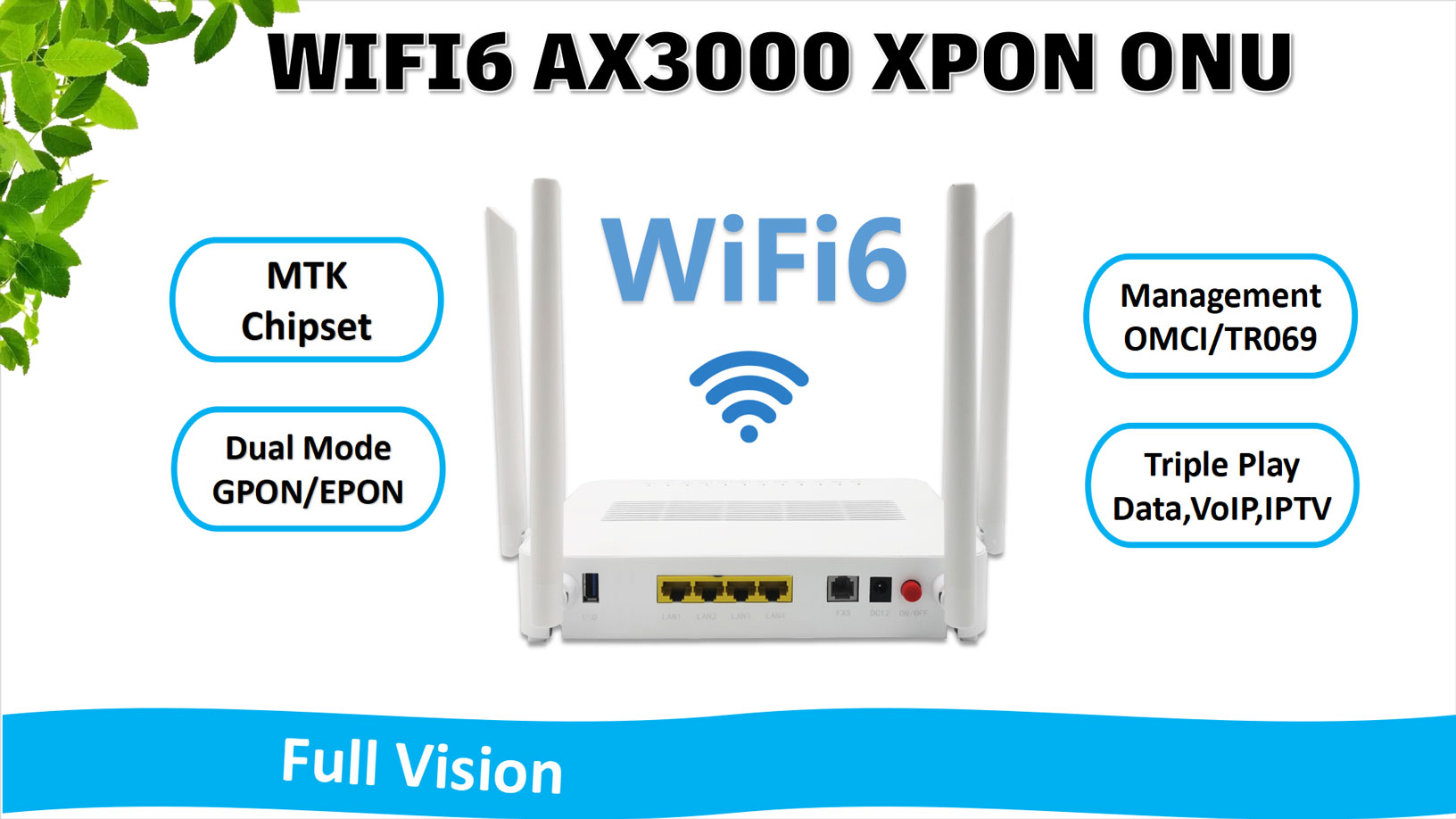

WIFI6 AX3000 XPON ONU

The WIFI6 AX3000 XPON ONU is a dual mode ONU that supports both GPON mode and EPON mode.
The ONU also supports three network integration, IPv4/IPv6 dual stack, OMCI/TR069 remote management, and other functions, fully meeting the diverse needs of users.
It can also be compatible with OLTs from various manufacturers, ensuring smooth and unobstructed business operations.


The FV-NX55U XPON ONU adopts the MTK wireless WIFI chip, supporting the latest wireless WIFI6 (IEEE 802.11ax)  AX3000 communication technology.
Compared to WIFI5, WIFI6 AX3000 XPON ONU has a speed of up to 3000Mbps, supports OFDMA, and can access more wireless terminal users;
Support WPA3 encryption technology, making users‘ online information more private and secure.
WIFI6_AX3000_XPON_ONU_Technology_FullVision_Small

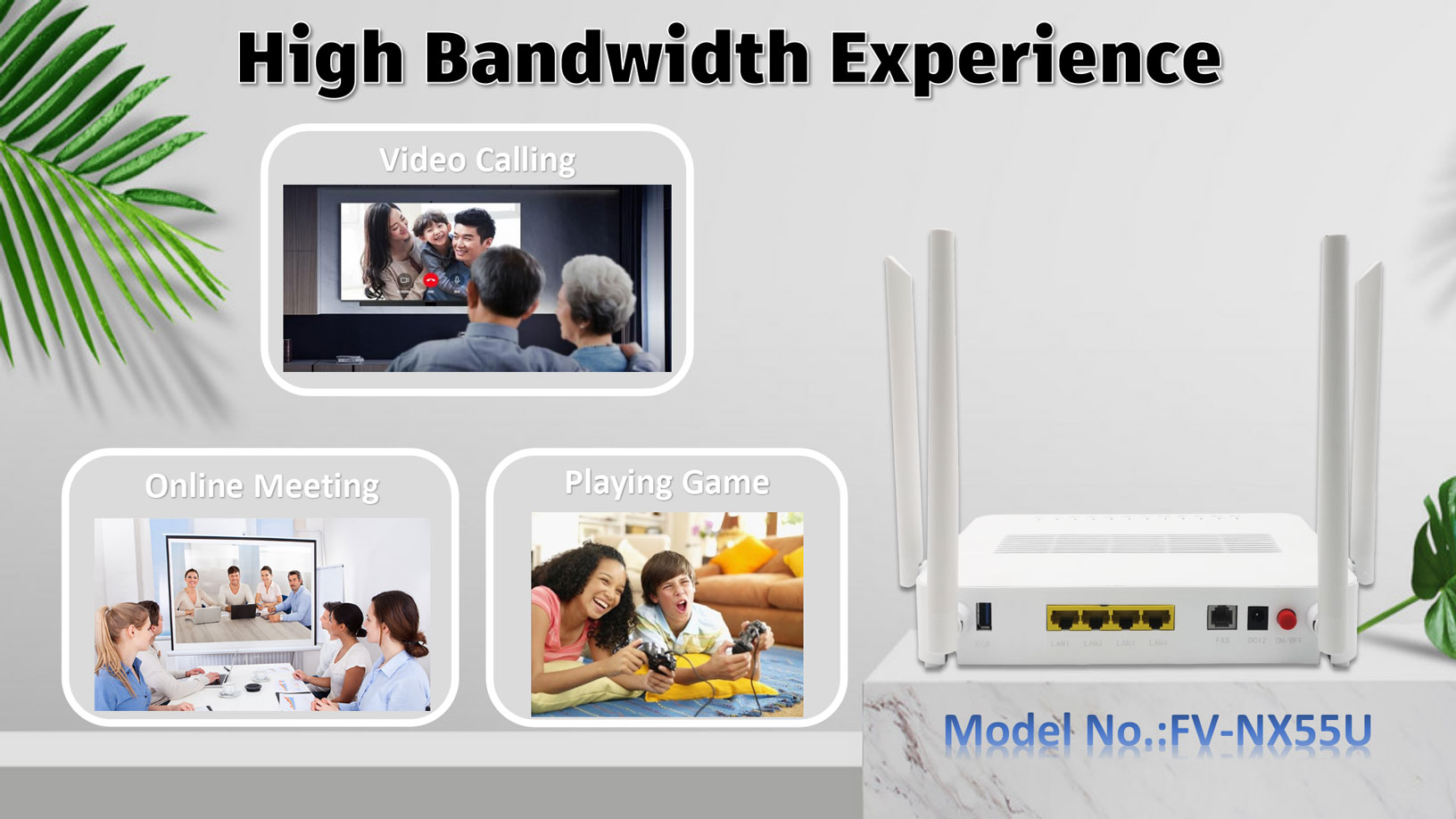

With the improvement of WIFI performance, our WIFI6 AX3000 XPON ONU can provide users with excellent experiences in various application scenarios, such as video calls, online games, online conferences, etc.


People‘s demands for the internet are increasing, and science and technology are constantly iterating and updating. WIFI6 technology may already meet the needs of the vast majority of people, but WIFI6 will not be the last generation of WIFI technology. Our future also includes WIFI7, WIFI8.
Technical Specifications

Hardware Parameters
PON: 1* SC/APC or SC/UPC connector
LAN:  4* GE RJ45 ports
FXS:  1* RJ11 VoIP port
USB:  1* USB 3.0 port
WiFi:  4* 5dBi external antennas
Button: WiFi, WPS, Reset, Power On/Off
LED Status Indicators: Power, PON, LOS, Internet, FXS, WLAN, LAN1-LAN4, USB

Register
GPON: SN,Password, Loid authentication
EPON: MAC address, Loid authentication
Flexible mapping between GEM Port and TCONT
SR-DBA and NSR-DBA

PON Parameters
GPON: ITU-T G.984/G.988 GPON standards,Class B+
EPON: IEEE802.ah,1000BASE-PX20+ symmetric
GPON: 2.488Gbps/1.244Gbps downstream/upstream
EPON: 1.25Gbps downstream/upstream
Wavelength: Transmit: 1310nm, Receiver: 1490nm
Receiving Sensitivity : GPON: -28dBm, EPON: -27dBm
Saturated Power: GPON: -8dBm, EPON: -3dBm
Transmitting Power : GPON: 0.5～5dBm, EPON: 0～4dBm

Layer 2 Switch
IEEE 802.1q, VLAN transparent/tag/trunk
MAC address learning/limit
Port flow control

Device Parameters
Power: AV100~240V --> DC12V 2A
Power Consumption: <18W
Dimensions: 184mm(L) x134.5mm(W) x27mm(H)
Weight: About 260g
Operating Temperature: -20°C to +50°C
Storage Temperature: -40°C to +85°C
Operating humidity: 5% to 95%(Non-condensing)

WiFi
4* 5dBi external antennas
IEEE 802.11a/b/g/n/ac/ax
Speed 3000Mbps@2.4GHz 574Mbps+5.8GHz 2402Mbps
MIMO 2x2
4* SSIDs broadcast/hidden
WEP/WPA/WPA2/WPA3 security
WiFi channel auto select

USB
DLNA DMS
SFile/Printer sharing
USB backup/restore configuration

VoIP
SIP/H.248
Codec: G.711, G.729, G.723
T.30, T.38, G.711 fax mode
Caller Identification/Call Waiting/Call Forwarding/Call Transfer/Call Hold/3-way Conference

Network
PPPoE/DHCP/Static IP
NAT/NATP
Port forwarding
DNS server/client
DHCP server/client
IPV4, IPV6, IPV4/IPV6 dual stack
Static routing/Dynamic routing
IGMP transparent/proxy/snooping

QoS
Flexible packet classification
SP/WRR/SP+WRR
Ingress rate limit
Egress shaping
WMM(WiFi Multi Media)

Security
Broadcast packet rate limit
MAC address/URL filtering
Multiple VPN(IPSec, PPTP) pass through Firewall
Broadcast/Unicast/Multicast attack protection
Dual image for firmware auto rollback

Management
OMCI/TR069 management
Local WEB GUI/Telnet management
Remote WEB GUI/Telnet management
