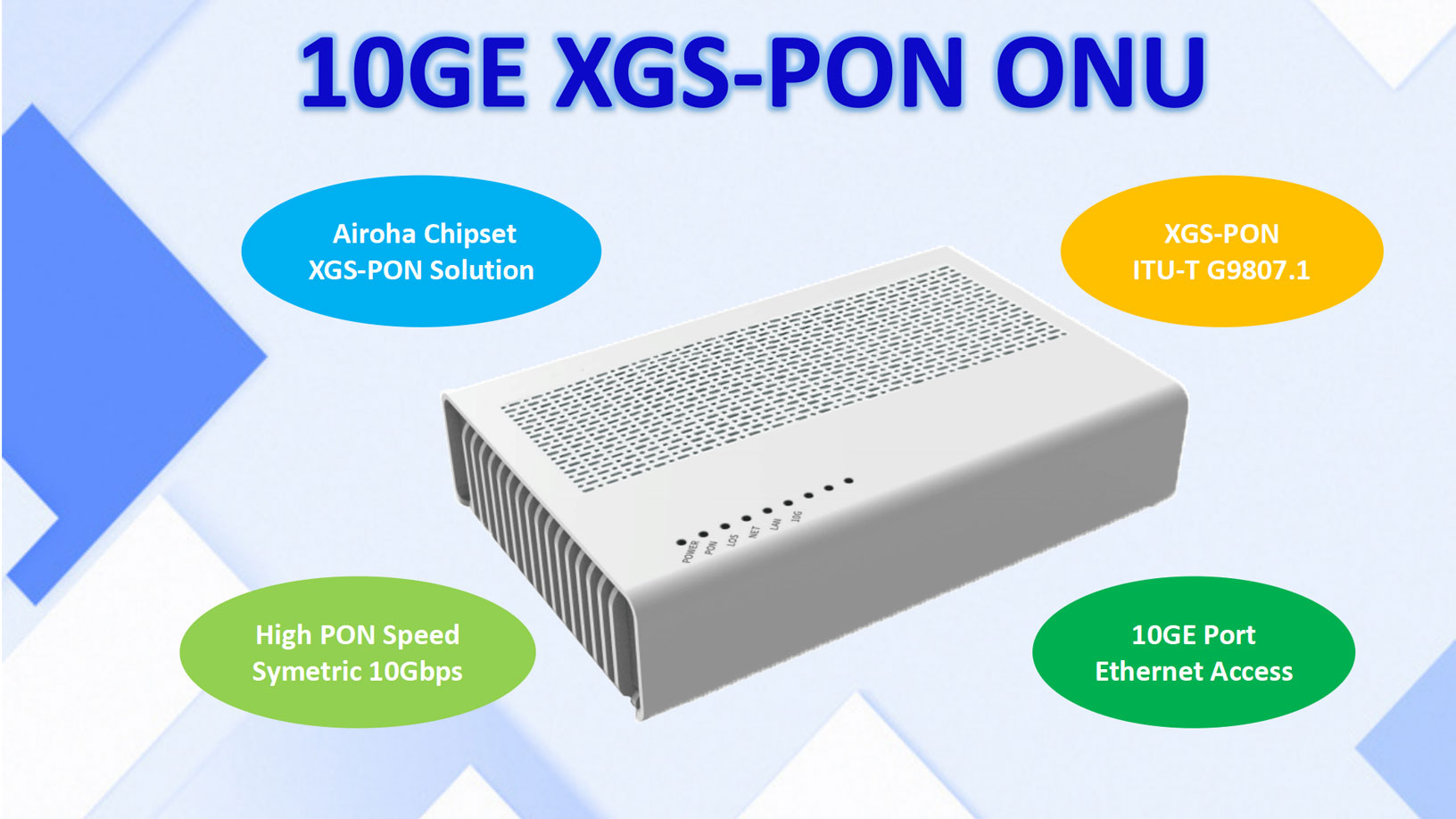

FV-NS101 is a technology leading XGS-PON ONU. This ONU is fully developed based on the XGS-PON standard ITU-T G.9807 and belongs to a 10G symmetric PON, with an uplink and downlink rate of 9.953Gbps.
It aims to meet the FTTH ultra wideband access requirements of home and SOHO users.


The XGS-PON ONU is built on stable and mature GPON technology and layer2 Ethernet switch technology, with highly cost-effective characteristics.
Our XGS-PON ONU is reliable and easy to maintain, ensuring QoS, and fully complies with the ITU-T G.9807 XGS-PON standard.
In addition, 10GE XGS-PON ONU also supports bridge and routing features like PPPoE, DHCP, Static IP, and supports NAT/Firewall features.
And 10GE XGS-PON ONU supports TR069 remote management and fully compatible with other vendor OLT.


With high speed of PON and LAN ports, 10GE XGS-PON ONU also supports multiple applications which needs high speed bandwidth, such as Competitive Games, HD Movie/Video, Office Network, Market Network.

People‘s demand for the internet is increasing, and XGS-PON products with high bandwidth will gradually become popular in the future to improve people‘s network quality.

Technical Specifications

Hardware Parameters

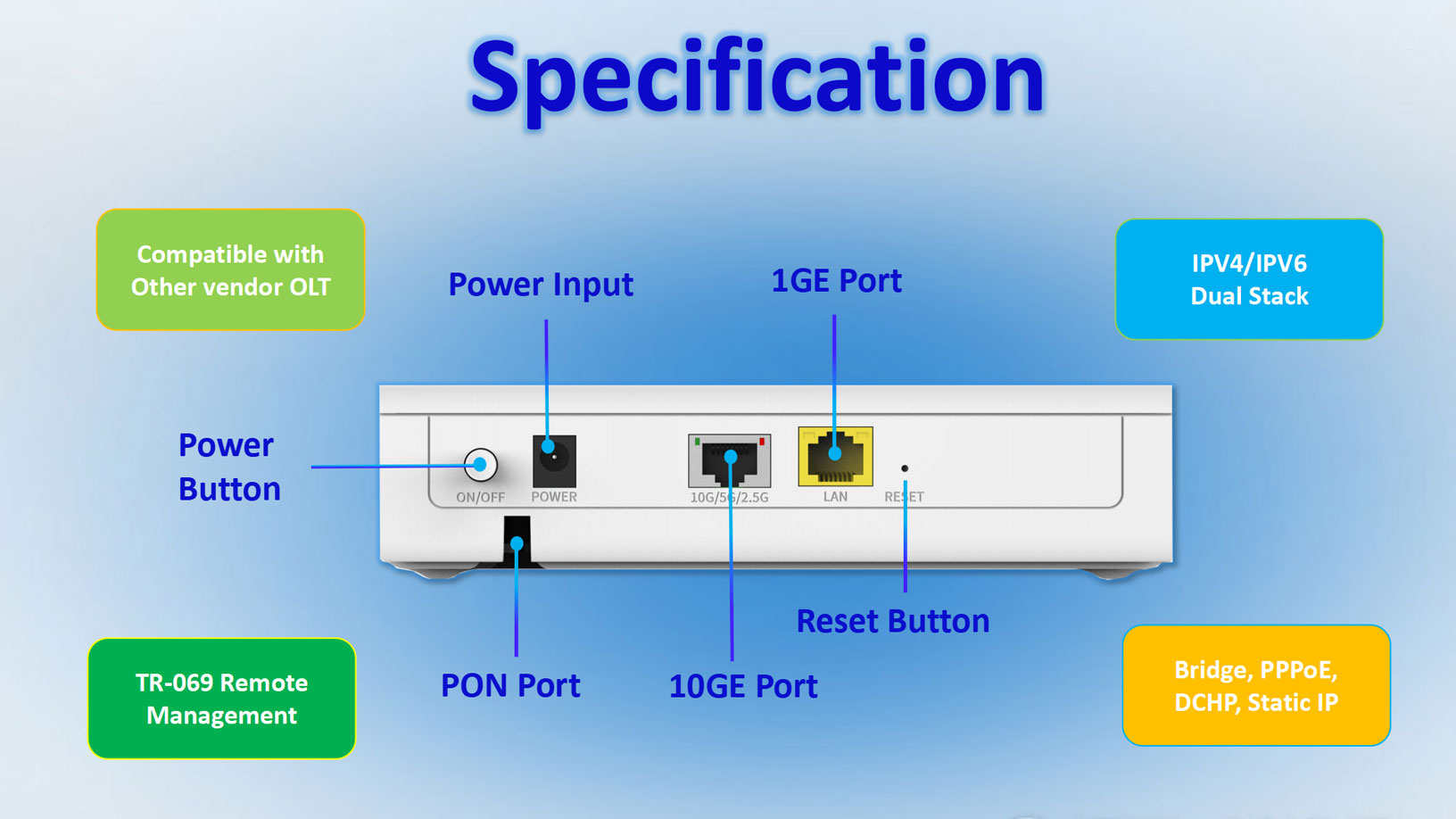

PON:  1* SC/APC or SC/UPC connector
LAN:  1* 2.5G/5G/10G BASE-T Ethernet RJ45 ports and 1* GE RJ45 port
Button: Reset, Power On/Off
LED Status Indicators: Power, PON, LOS, Internet, LAN, 10GE

Register
XGS-PON: SN,Password, Loid authentication
Flexible mapping between GEM Port and TCONT
SR-DBA and NSR-DBA

PON Parameters
XGS-PON: ITU-T G.9807  XGS-PON standards, XGS-PON  SFP+
XGS-PON: 9.953Gbps/9.953Gbps downstream/upstream
Wavelength: Transmit: 1270nm, Receiver: 1577nm
Receiving Sensitivity : XSG-PON:  >= -28dBm
Transmitting Power : XSG-PON: 1～4dBm

Layer 2 Switch
IEEE 802.1q, VLAN transparent/tag/trunk
MAC address learning/limit
Port flow control

Network
PPPoE/DHCP/Static IP
NAT/NATP
Port forwarding
DNS server/client
DHCP server/client
IPV4, IPV6, IPV4/IPV6 dual stack
Static routing/Dynamic routing
IGMP transparent/proxy/snooping

QoS
Flexible packet classification
SP/WRR/SP+WRR
Ingress rate limit
Egress shaping

Security
Broadcast packet rate limit
MAC address/URL filtering
Multiple VPN(IPSec, PPTP) pass through Firewall
Broadcast/Unicast/Multicast attack protection
Dual image for firmware auto rollback

Management
OMCI/TR069 management
Local WEB GUI/Telnet/SSH management
Remote WEB GUI/Telnet/SSH management
Firmware upgrade via FTP/TFTP/HTTP
Configuration backup/restore

Device Parameters
Power: 12V/1.5A DC
Power Consumption: <25W
Dimensions:175mm(L) x115mm(W) x36mm(H)
Weight: About 260g
Operating Temperature: 0°C to +45°C
Storage Temperature: -20°C to +70°C
Operating humidity: 5% to 95%(Non-condensing)
