XGSPON/XGPON/GPON COMBO OLT
Model No.:FV-L9008
FV-L9008 is a highly integrated, large-capacity XG(S)-PON OLT for operators, ISPs, enterprises, and campus applications. The product follows the ITU-T G.987/G.988 technical standard, and can be compatible with three modes of GPON/XG-PON/XGS-PON at the same time. The asymmetric system (up 2.5Gbps, down 10Gbps) is called XG-PON, and the symmetric system (up 10Gbps, down 10Gbps) is called XGS-PON. XG(S)-PON OLT is only 1U in height, easy to install and maintain, and save space. It supports mixed networking of different types of ONUs, which can save a lot of costs for operators.
FV-L9008 is a highly integrated, large-capacity XG(S)-PON OLT for operators, ISPs, enterprises, and campus applications.
The XGS-PON OLT product follows the ITU-T G.987/G.988 technical standard, and can be compatible with three modes of XGS-PON, XG-PON, GPON at the same time.
The asymmetric system (up 2.5Gbps, down 10Gbps) is called XG-PON,
and the symmetric system (up 10Gbps, down 10Gbps) is called XG(S)-PON.
XG(S)-PON OLT is only 1U in height, easy to install and maintain, and save space.
It supports mixed networking of different types of ONUs, which can save a lot of costs for operators.



Technical Specifications

Interface Parameters
Uplink Port :
8* 10GE SFP/GE SFP
2* 100G QSFP28
PON Port：
8* XG(S)-PON/GPON ports
Management Port :
1*FE RJ45 ethernet port(out-band management)
1*Console local management port
1* Reset button

Access Capacity
Exchange Capacity: 720Gbps
Packet Forwarding Rate: 535.68Mpps
Max User(ONTs) Connect: 2048

PON Parameters
Transmission Distance: 40KM Physical differential distance,100KM transmission logical distance
Optical Split Ratio:  1:256 on single port
Compliant Standard:  ITU-T G.987/G.988
Interface Type: Class C+/Class C++/Class C+++/XG-PON/XG(S)-PON SFP slot
Fiber Type:  9/125μm SMF
Port Rate:
GPON: Downstream: 2.5Gbps, Upstream: 1.25Gbps
XG-PON: Downstream: 10Gbps, Upstream: 2.5Gbps
XGS-PON: Downstream: 10Gbps, Upstream: 10Gbps
Wavelength:
GPON: 1490nm/1310nm
XG-PON: 1577nm/1270nm
XGS-PON: 1577nm/1270nm

Device Parameters
Power:  AC: 100～240V 47/63Hz, DC:  36V～-75V
1+1 dual power supply redundancy
Power Consumption:  <100W
Dimensions:  440mm(L) x270mm(W) x44mm (H)
Weight:  about 6.5kg
Operating Temperature:  -10°C to +55°C
Storage temperature：-40°C～70°C
Operating humidity:  10% to 95%(Non-condensing)

L2 Features
4K VLAN,VLAN based on port/MAC/protocol
VLAN transparent/tag/trunk/static QinQ/flexible
QinQ/Dual Tag VLAN
128K mac address,MAC address aging/learning/query
9K Jumbo ultra-long frame forwarding

L3 Features
ARP learning/aging
L3 interface(vlan if)
Static routing
Dynamic routing RIP/OSPF/BGP/ISIS
VRRP

Network Protection
STP/RSTP/MSTP
ERPS Ethernet ring network protection protocol
Loop detection
Static link aggregation and dynamic LACP

Security Features
Broadcast/multicast flooding rate limitation
ARP flood suppression and ARP spoofing protection
DOS attack and virus attack protection
IEEE 802.1X authentication,support Radius&TACACS+authentication
IP Source Guard
MAC address learning limit/black hole MAC/MAC filtering function
Port isolation
Basic ACL and extended ACL
CPU protocol packet rate limit and scheduling

System Management
CLI, Telnet, WEB, SNMP V1/V2/V3, SSH2.0
Support FTP, TFTP, file upload and download
User management
Support RMON function
Support log, alarm management, RFC 3164 Syslog
Support SNTP function
Ping, Traceroute function

Multicast
IGMP snooping/poxy/transparent
1024 multicast groups

QoS
Flow rate limiting function based on custom business flow
Mirroring and redirection functions based on custom business flows
Priority marking based on custom service flow
802.1P, DSCP priority Remark capability
Port-based priority scheduling function
Queue & scheduling mechanism: SP/WRR/DWRR/SP+WRR

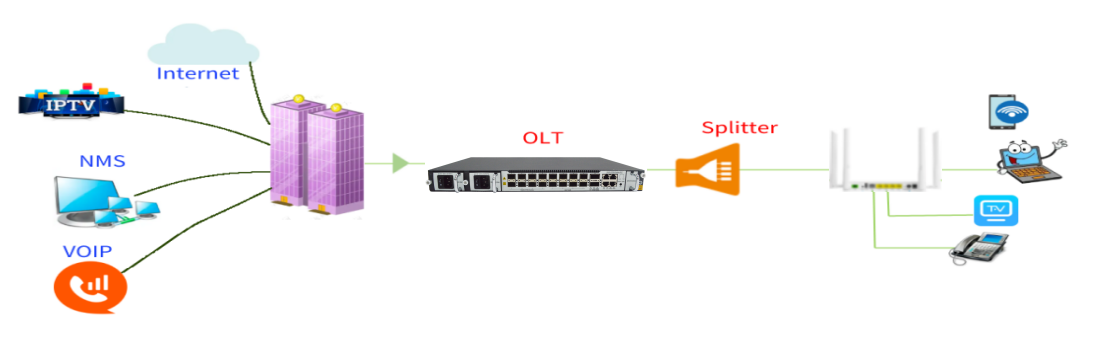

XG(S)-PON OLT Application
