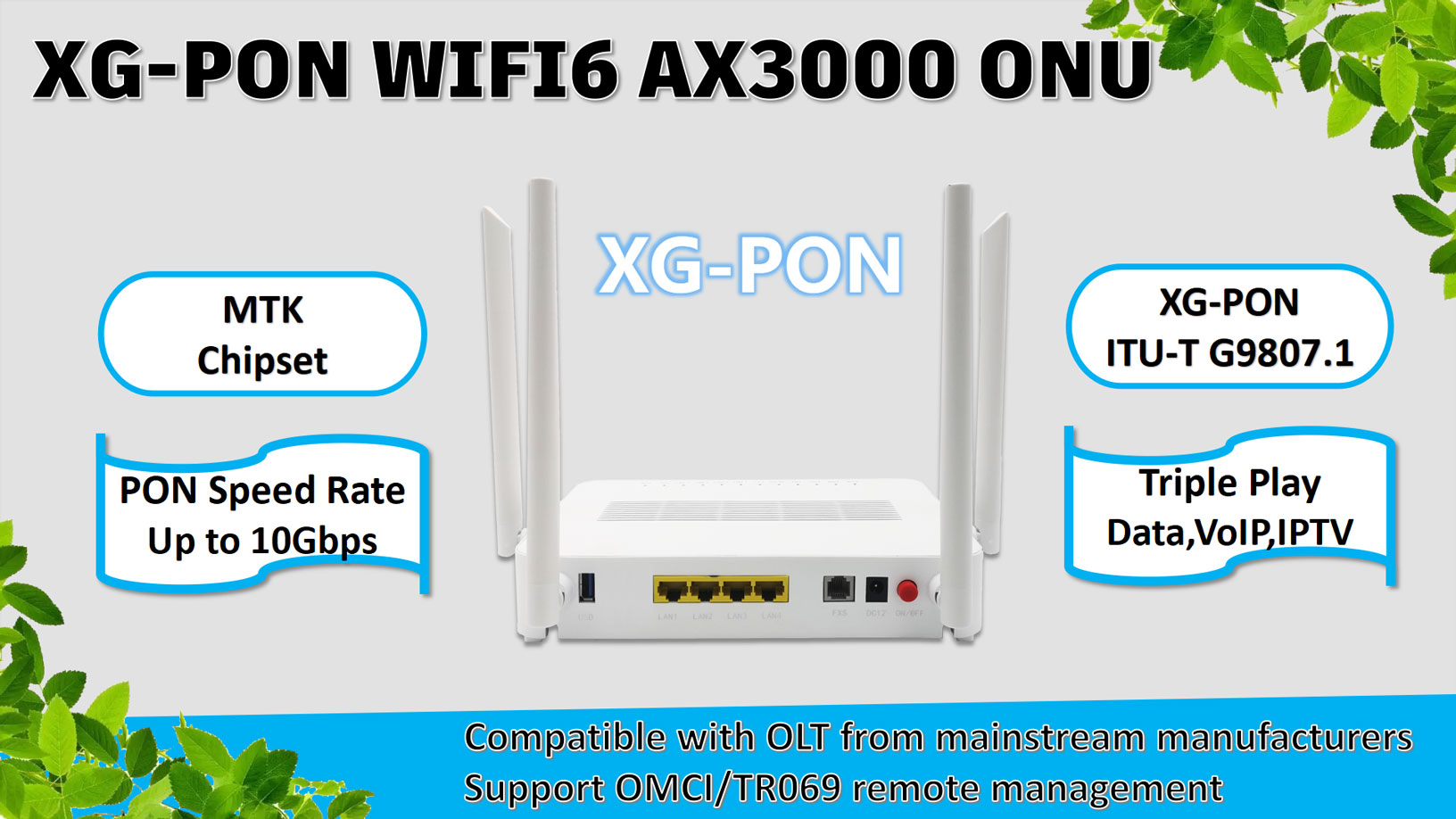

XG-PON WIFI6 AX3000 ONU
FV-NA55U XG-PON WIFI6 ONT integrates interoperability, specific requirements of key customers, and cost-effectiveness.
It integrates XG-PON (supporting uplink 2.5Gbps and downlink 10Gbps asymmetric rates;), routing, switching, security, WiFi 6 (802.11a/b/g/n/ac/ax), VoIP, and USB functions, and can support security management, security management, USB functions, URL filtering, and other functions, while meeting users‘ basic broadband internet access.
This XG-PON ONT product meets the standard OMCI definition and China Mobile Intelligent Home Gateway standard, supports WEB graphical management, OAM/OMCI, and TR069 network management functions, and supports remote supervision, monitoring, and maintenance, greatly facilitating network management and maintenance for network administrators.

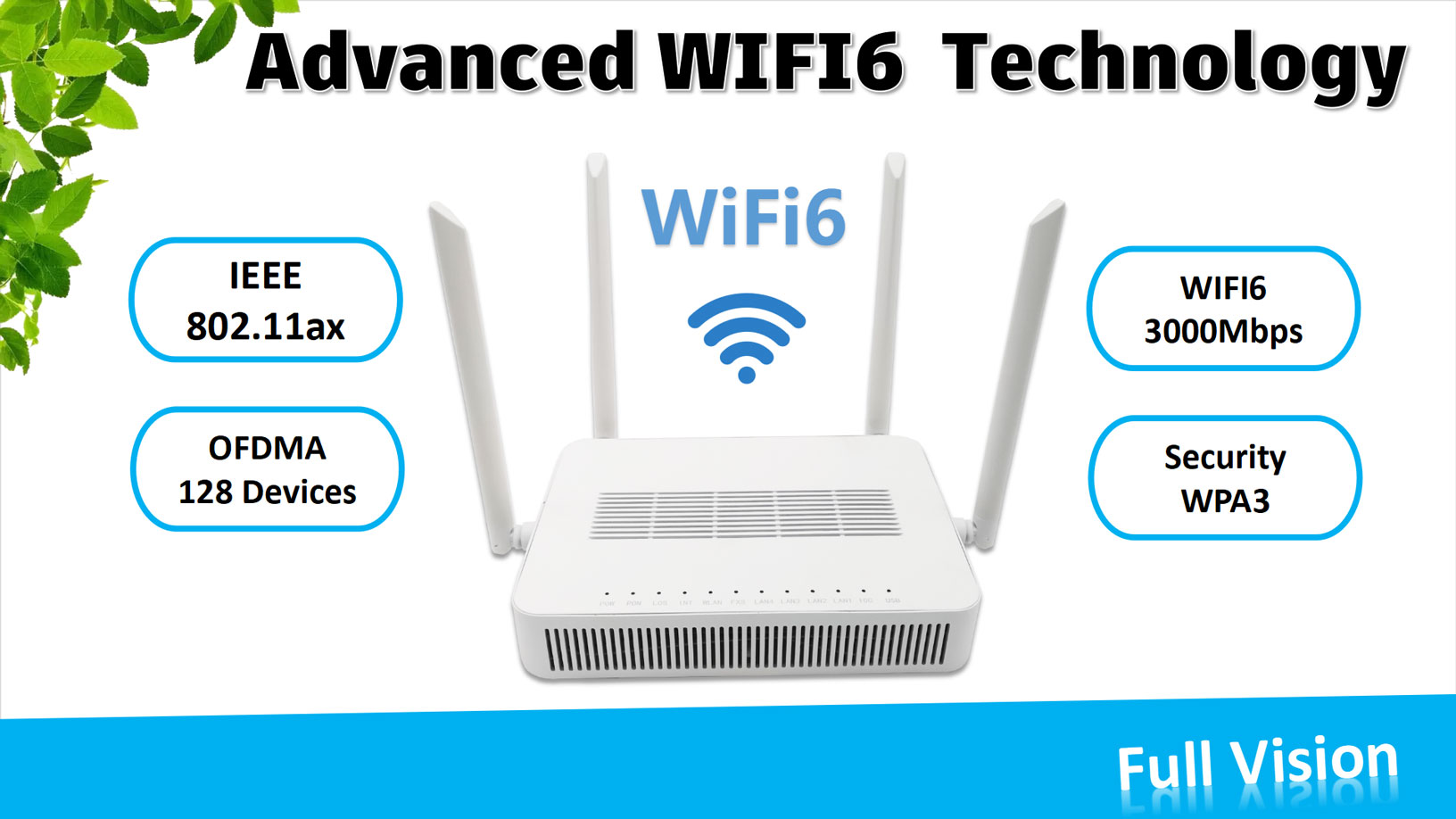

In order to better meet the user‘s WIFI access experience, our XG-PON ONU adopts the industry recognized most stable MTK WIFI chip, which supports the latest WIFI6 technology and meets the IEEE 802.11ax protocol.
The XG-PON WIFI6 AX3000 ONU supports dual band WIFI, supporting 2.4GHz and 5GHz, MIMO 2x2, and WIFI rates up to 3000Mbps. It also supports the latest WPA3 encryption function, which can better protect the security of user information.
The XG-PON ONU has a larger bandwidth rate than the GPON ONU, and the user network has been upgraded.
Our XG-PON ONU can better adapt to various service needs of people, such as high-quality games, online movies, video calls, and other businesses.
It can also solve the problem of slow download speed for users.
In short, XG-PON ONU has begun to become popular in various countries, especially in regions such as Europe and America.
Technology is advancing, and people‘s needs are also increasing. Upgrading the network as soon as possible can prioritize experiencing the pleasure of high-speed bandwidth.
Technical Specifications
Hardware Parameters
PON: 1* SC/APC or SC/UPC Connector
LAN: 4* GE RJ45 ports
FXS: 1* RJ11 VoIP port
USB: 1* USB 3.0 port
WiFi: 4* 5dBi external antennas
Button: WiFi, WPS, Reset, Power On/Off
LED Status Indicators: Power, PON, LOS, Internet, FXS, WLAN, LAN1-LAN4, USB
Register
XG-PON: SN,Password, Loid authentication
Flexible mapping between GEM Port and TCONT
SR-DBA and NSR-DBA
XG-PON Parameters
XG-PON: ITU-T G.987/G.988 XG-PON standards, XG-PON SFP+
XG-PON: 9.953Gbps/2.488Gbps downstream/upstream
Wavelength: Transmit: 1270nm, Receiver: 1577nm
Receiving Sensitivity : XG-PON: >= -28dBm
Transmitting Power : XG-PON: 1～4dBm
Layer 2 Switch
IEEE 802.1q, VLAN transparent/tag/trunk
MAC address learning/limit
Port flow control
Device Parameters
Power: DC 12V 1.5A
Power Consumption: <18W
Dimensions: 184mm(L) x134.5mm(W) x27mm(H)
Weight: About 260g
Operating Temperature: -5°C to +50°C
Storage Temperature: -40°C to +85°C
Operating humidity: 10% to 90%(Non-condensing)
WiFi
4*4 5dBi external antennas
IEEE 802.11a/b/g/n/ac/ax
Speed 3000Mbps@2.4GHz 574Mbps+5.8GHz 2402Mbps
MIMO, 2x2
4* SSIDs broadcast/hidden
WEP/WPA/WPA2/WPA3 security
WiFi channel auto select
USB
DLNA DMS
SFile/Printer sharing
USB backup/restore configuration
VoIP
SIP/H.248
Codec: G.711, G.729, G.723
T.30, T.38, G.711 fax mode
Caller Identification/Call Waiting/Call Forwarding/Call Transfer/Call Hold/3-way Conference
Network
PPPoE/DHCP/Static IP
NAT/NATP
Port forwarding
DNS server/client
DHCP server/client
IPV4, IPV6, IPV4/IPV6 dual stack
Static routing/Dynamic routing
IGMP transparent/proxy/snooping
QoS
Flexible packet classification
SP/WRR/SP+WRR
Ingress rate limit
Egress shaping
WMM(WiFi Multi Media)
Security
Broadcast packet rate limit
MAC address/URL filtering
Multiple VPN(IPSec, PPTP) pass through Firewall
Broadcast/Unicast/Multicast attack protection
Dual image for firmware auto rollback
Management
OMCI/TR069 management
Local WEB GUI/Telnet management
Remote WEB GUI/Telnet management
