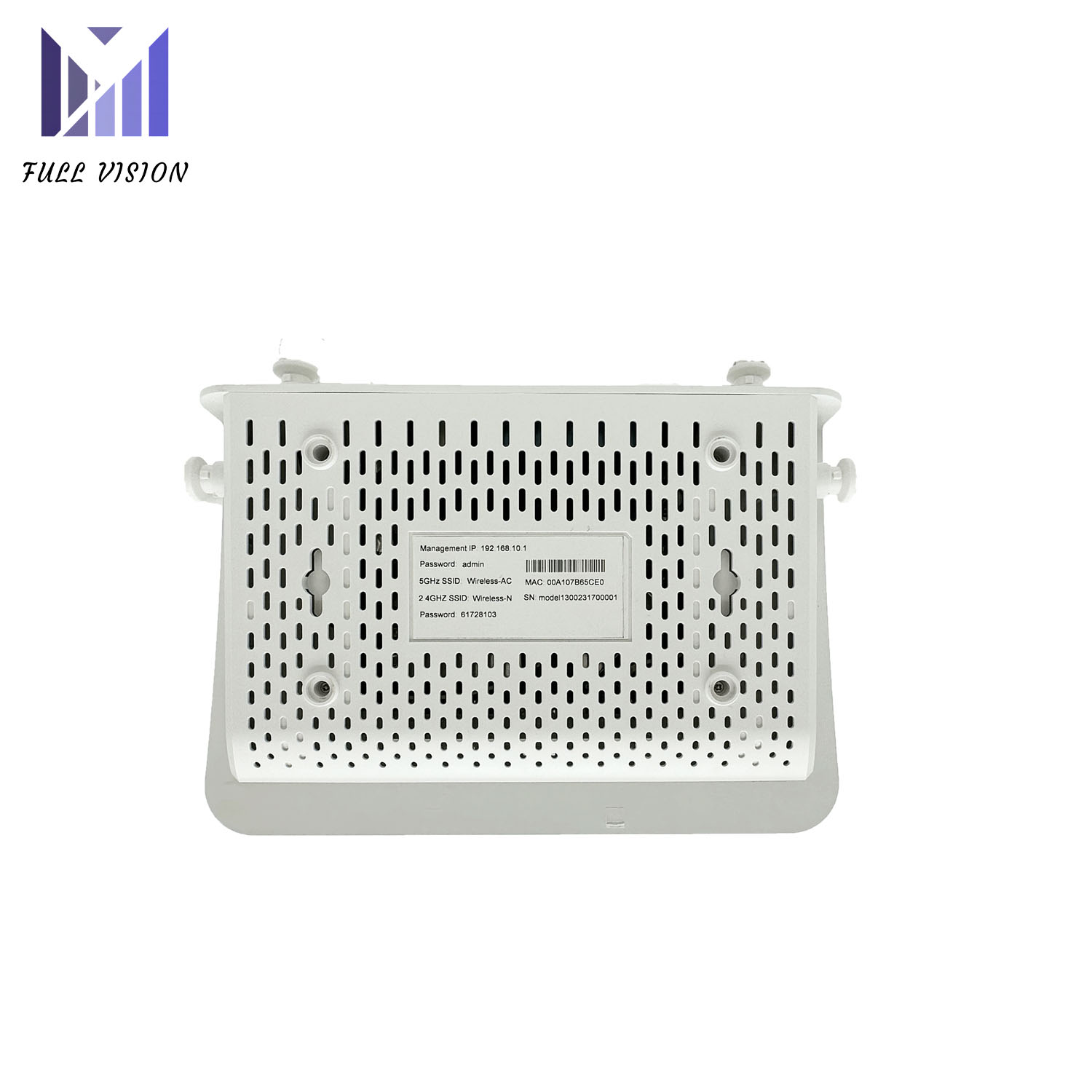

WiFi6 AX1500 Router
Model No.:FV-W350

FV-W350 is a high-performance, high-speed home router. It adopts advanced WIFI6 wireless technology, supports IEEE 802.1ax protocol, and can reach a maximum wireless speed about 1500Mbps, with a 2.4G speed of 600Mbps and a 5G speed of 867Mbps. Wireless WiFi has a wide coverage range, stable signal, and fully meets the needs of home users. Playing games without getting stuck or disconnected can provide users with an excellent Internet experience. This router supports firewall functionality and can ensure user network security; It also supports NAT function, playing Xbox games is not a problem.
Hardware Specification
Model No. FV-W350
WLAN IEEE 802.11 b/g/n 2.4GHz 2T2R
IEEE 802.11 a/n/ac/ax 5GHz 2T2R
Antennas Wi-Fi antennas Internal 2×2 2.4GHz antennas
Internal 2×2 5GHz antennas
Interface Port 1×WAN port
3×LAN port
1×Power port
Indicator 1×LAN
1×5G Wi-Fi
1×2.4G Wi-Fi
1×Internet
1×Power
1×SYS
1×WPS
Button 1×Reset
1×Power
1×WPS
Environment Operating temperature: -10°C to 45°C
Storage temperature: -40°C to +70°C
Humidity: 5% - 95% (non-condensing)
Others Power supply 12V/3A
Dimensions 190mm x 130mm x 29mm
Overview
This product supports the newest IEEE 802.11ax standards. It implements the conversion between wired Ethernet data and wireless WiFi data. The MU-MIMO and beamforming function can ensure the high data rate and signal quality when several users are using simultaneously. Besides the high-performance WLAN function, supplies firewall, QoS, maintenance, and management functions. It provides the stable services to home and enterprise users.

Software Specification
●  Wireless LAN
●  Support 802.11 a/b/g/n/ac/ax Standards
●  20/40/80 MHz bandwidth
●  Channel adaption
●  MSSID + Guest network
●  WPS: PBC/PIN modes
●  WPA/WPA2/WPA3 security

Network Protocols and Features
●  Connection modes: PPPoE/DHCP/Static
●  IPv4, IPv6, IPv4/IPv6
●  DHCP v4/v6 server  Static (v4/v6) routing, RIP
●  NAT/ALG/DMZ/virtual server  ARP/ICMP/DNS proxy
●  NTP
●  VLAN

Management
●  WebUI local management
●  TR069 remote management
●  Online and local software upgrade
●  Local diagnostic

Firewall
●  Built-in firewall
●  Defense of DoS, ARP attacks/Port scan
●  MAC/Port filtering

Quality of Service Control
●  802.11e WMM
●  Classification of service flow
●  Port/VLAN/ IP rate limitation

Hardware Specification
Model No. FV-W350
WLAN IEEE 802.11 b/g/n 2.4GHz 2T2R
IEEE 802.11 a/n/ac/ax 5GHz 2T2R
Antennas Wi-Fi antennas Internal 2×2 2.4GHz antennas
Internal 2×2 5GHz antennas
Interface Port 1×WAN port
3×LAN port
1×Power port
Indicator 1×LAN
1×5G Wi-Fi
1×2.4G Wi-Fi
1×Internet
1×Power
1×SYS
1×WPS
Button 1×Reset
1×Power
1×WPS
Environment Operating temperature: -10°C to 45°C
Storage temperature: -40°C to +70°C
Humidity: 5% - 95% (non-condensing)
Others Power supply 12V/3A
Dimensions 190mm x 130mm x 29mm
