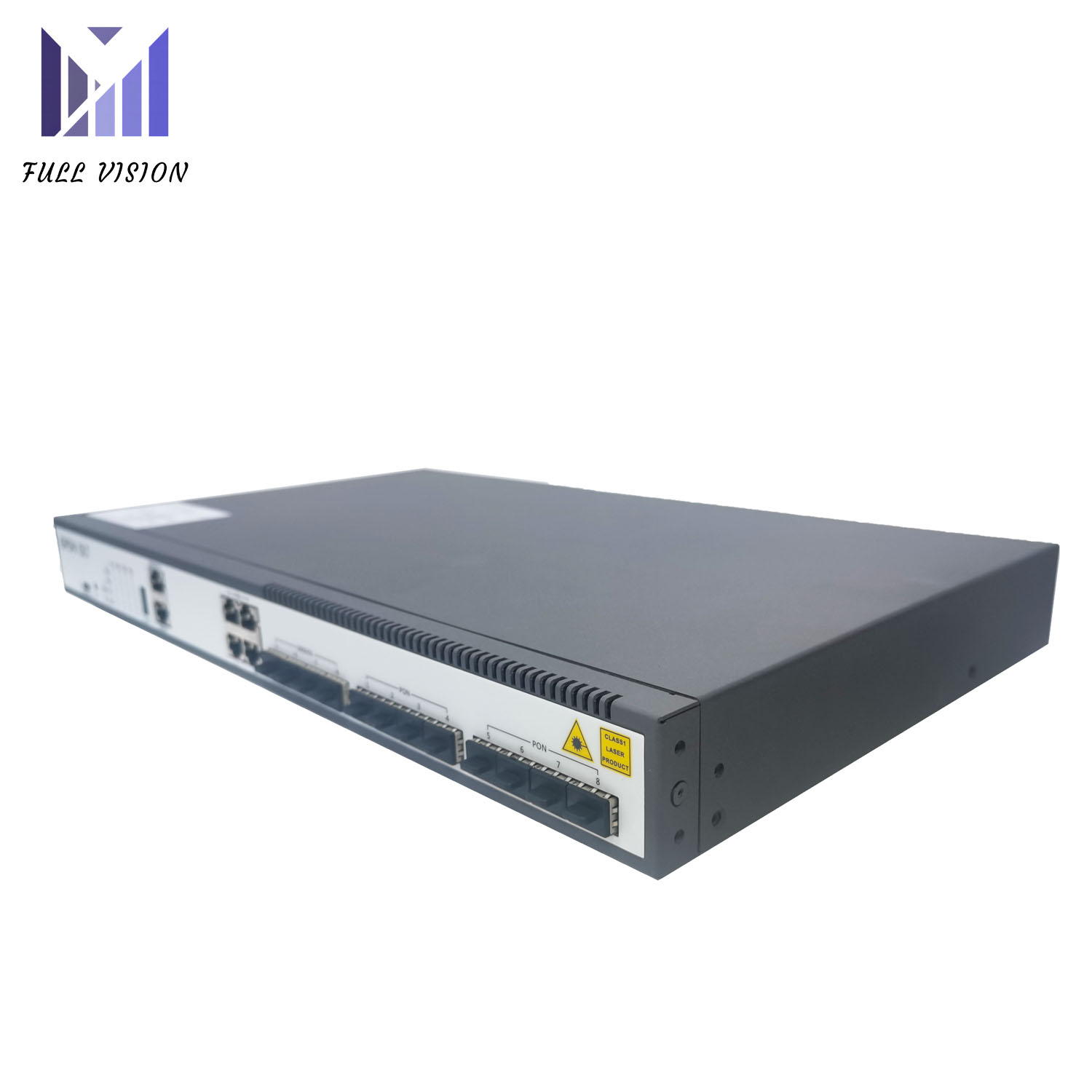

FTTH GPON OLT 4PON /8 PON /16 PON optional
Model No.:FV-L5008

FV-L5008 is a boxed GPON OLT that meets the requirements of ITU-T G.984/G.988 and China Telecom/Unicom related GPON standards.
The spectral ratio of a single PON port is 1:128; The wavelengths of the upstream and downstream are 1310nm/1490nm respectively; PON port speed, uplink 1.25Gbps, downlink 2.5Gbps.
This OLT has 8 PON ports and can connect up to 1024 ONUs. It has the characteristics of high performance, small size, and convenient and flexible deployment.
Our 8-port GPON OLT is an open type OLT that is compatible with ONU products from various manufacturers.
The GPON OLT meets the requirements of ISP/enterprise networks to improve network performance, improve reliability, and reduce power consumption. It is suitable for cost-effective network applications such as FTTH/FTTB networks, video surveillance networks, and the Internet of Things.
GPON OLT Overview
FV-L5008 is a boxed GPON OLT that meets the requirements of ITU-T G.984/G.988 and China Telecom/Unicom related GPON standards.
The spectral ratio of a single PON port is 1:128; The wavelengths of the upstream and downstream are 1310nm/1490nm respectively; PON port speed, uplink 1.25Gbps, downlink 2.5Gbps.
This OLT has 8 PON ports and can connect up to 1024 ONUs. It has the characteristics of high performance, small size, and convenient and flexible deployment.
Our 8-port GPON OLT is an open type OLT that is compatible with ONU products from various manufacturers.
The GPON OLT meets the requirements of ISP/enterprise networks to improve network performance, improve reliability, and reduce power consumption. It is suitable for cost-effective network applications such as FTTH/FTTB networks, video surveillance networks, and the Internet of Things.

Interface Parameters Uplink ports 4*GE RJ45 ethernet ports, 4*GE SFP/10GE SFP+ ports
PON ports 8*SFP GPON ports
Management ports 1*FE RJ45 ethernet port(out-band management), 1*Console local management port, 1* Reset button
USB port 1*USB2.0 port (Used for save configuration,firmware upgrade and log record)
Power Supply 1+1 dual power supply redundancy
Device Parameters Power: AC: 100~240V 47/63Hz, DC: -48V~-75V
Power Consumption Less than 65W
Dimensions 440mm(L) x260mm(W) x44mm (H)
Weight about 5.5kg
Operating Temperature -10°C to +55°C
Storage temperature -40°C~70°C
Operating humidity 10% to 95%(Non-condensing)
Selected Model
Model PON ports Max User(ONTs) Connect
FV-5004 4 512
FV-5008 8 1024

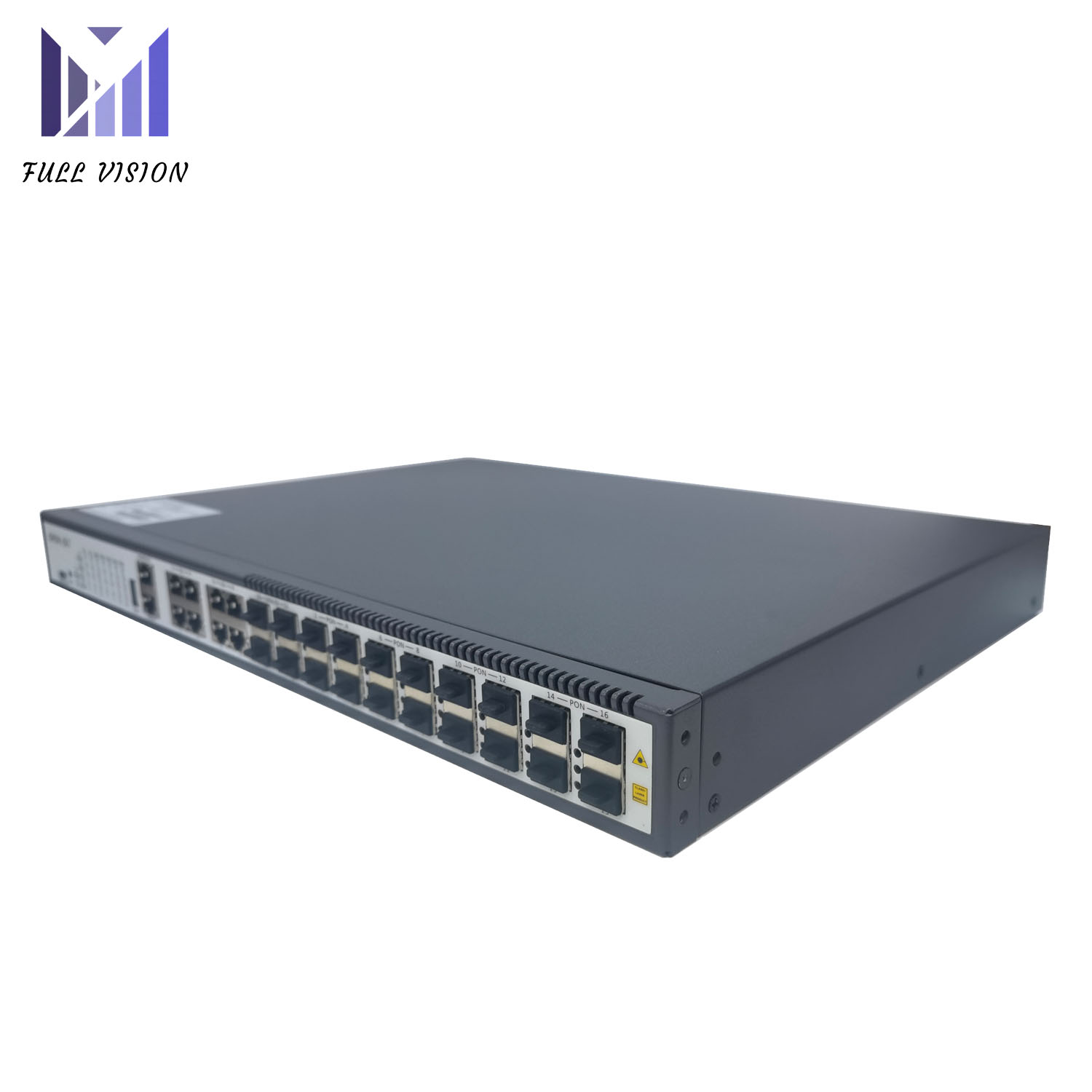

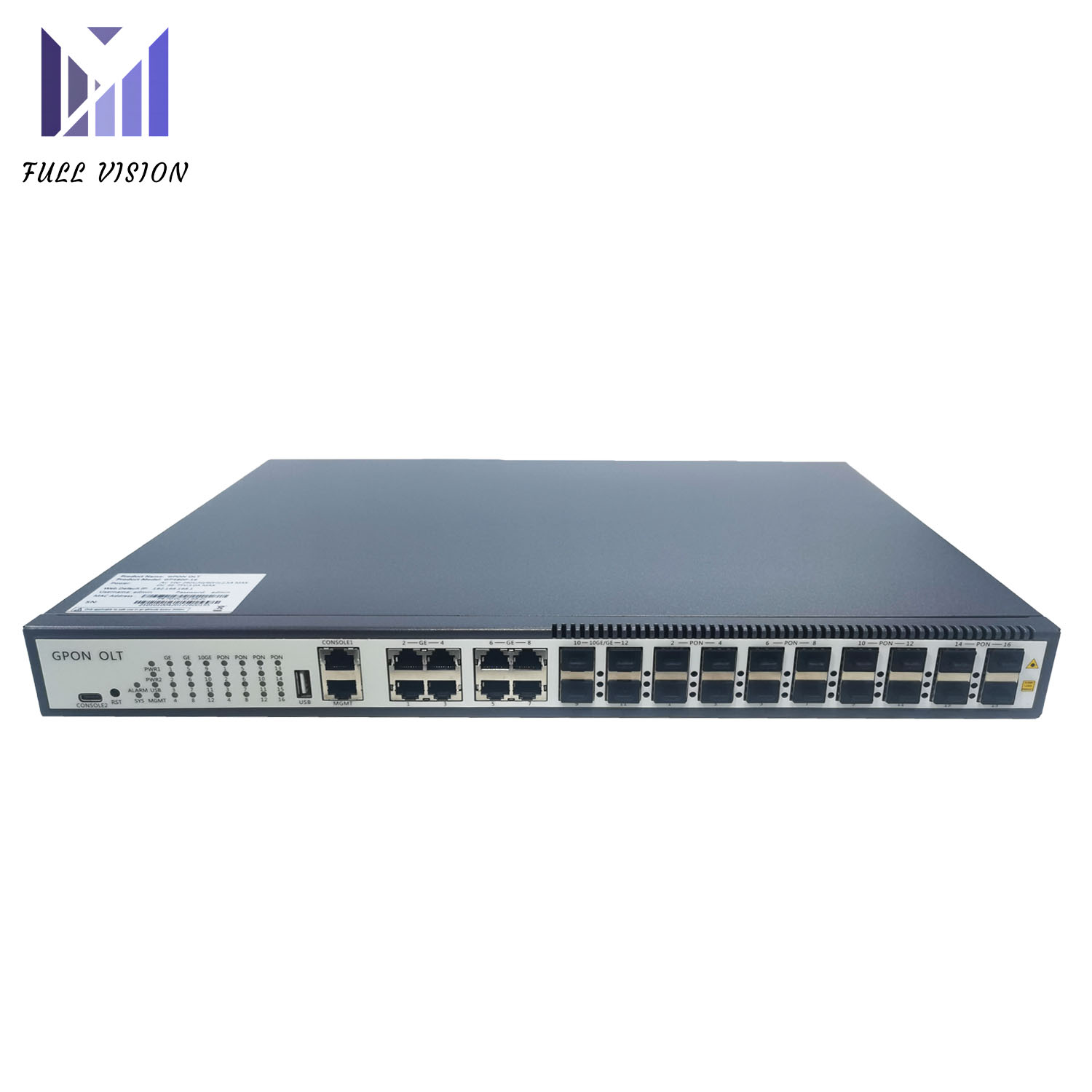

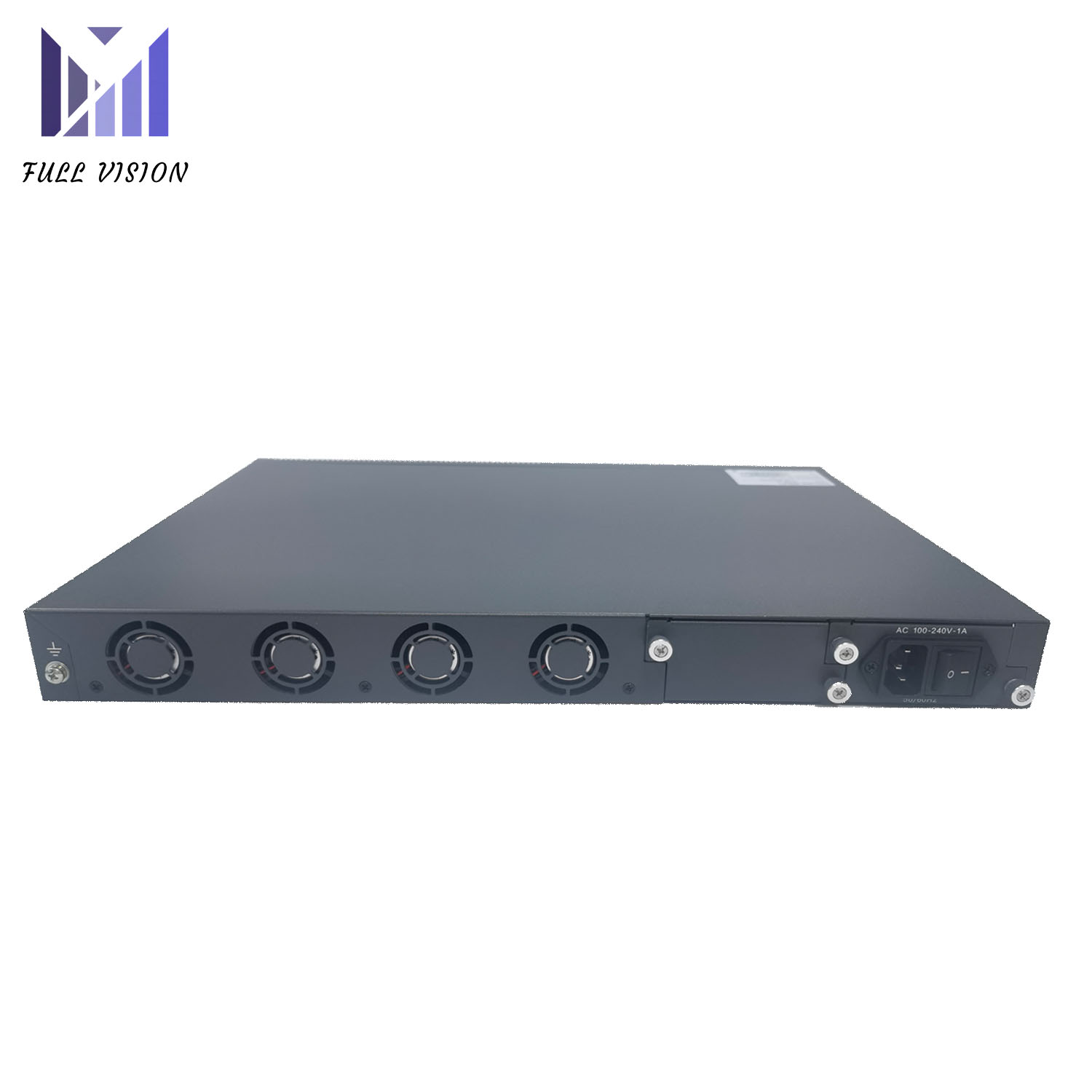

FV-5016 16 2048


Technical Specifications

Interface Parameters

Uplink Port :
4*GE RJ45 ethernet ports
4*GE SFP/10GE SFP+ ports
PON Port:
8*SFP GPON ports

Management Port :
1*FE RJ45 ethernet port(out-band management)
1*Console local management port
1*Type-C local management port
USB Port :
1*USB2.0 port (Used for save configuration,firmware upgrade and log record)

Access Capacity
Exchange Capacity: 118Gbps
Packet Forwarding Rate: 77.376Mpps
Max User(ONTs) Connect: 1024

PON Parameters
Transmission Distance: 20KM
Optical Split Ratio:  1:128 on single port
Compliant Standard:  ITU-T G.984.x/G.988
Interface Type: Class C+/Class C++/Class C+++ SFP slot
Fiber Type:  9/125μm SMF
Port Rate:
Downstream: 2.488Gbps, Upstream: 1.244Gbps
Wavelength:  1490nm/1310nm

Device Parameters
Power:  AC: 100~240V 47/63Hz, DC:  -48V~-75V
1+1 dual power supply redundancy
Power Consumption:  ≤65W
Dimensions:  440mm(L) x260mm(W) x44mm (H)
Weight:  about 5.5kg
Operating Temperature:  -10°C to +55°C
Storage temperature:-40°C~70°C
Operating humidity:  10% to 95%(Non-condensing)

L2 Features
4K VLAN,VLAN based on port/MAC/protocol
VLAN transparent/tag/trunk/static QinQ/flexible
QinQ/Dual Tag VLAN
16K mac address,MAC address aging/learning/query
9K Jumbo frame forwarding

L3 Features
ARP learning/aging/proxy
L3 interface(vlan if)
Static routing
Dynamic routing RIP/OSPF/BGP/ISIS
VRRP

Network Protection
STP/RSTP/MSTP
ERPS Ethernet ring network protection protocol
Loop detection
Static link aggregation and dynamic LACP

Security Features
Broadcast/multicast flooding rate limitation
ARP flood suppression and ARP spoofing protection
DOS attack and virus attack protection
IEEE 802.1X authentication, support Radius&TACACS+authentication
IP Source Guard
MAC address learning limit/black hole MAC/MAC filtering function
Port isolation
Basic ACL and extended ACL
CPU protocol packet rate limit and scheduling

System Management
CLI, Telnet, WEB, SNMP V1/V2/V3, SSH2.0
User management
Support RMON function
Support log, alarm management
Support SNTP function
Ping, Tracert function

Multicast
IGMP snooping/poxy/transparent
1024 multicast groups

QoS

Flow rate limiting function based on custom business flow
Mirroring and redirection functions based on custom business flows
Priority marking based on custom service flow
802.1P, DSCP priority Remark capability
Port-based priority scheduling function
Queue & scheduling mechanism: SP/WRR/DWRR/SP+WRR
8PON Ports GPON OLT
