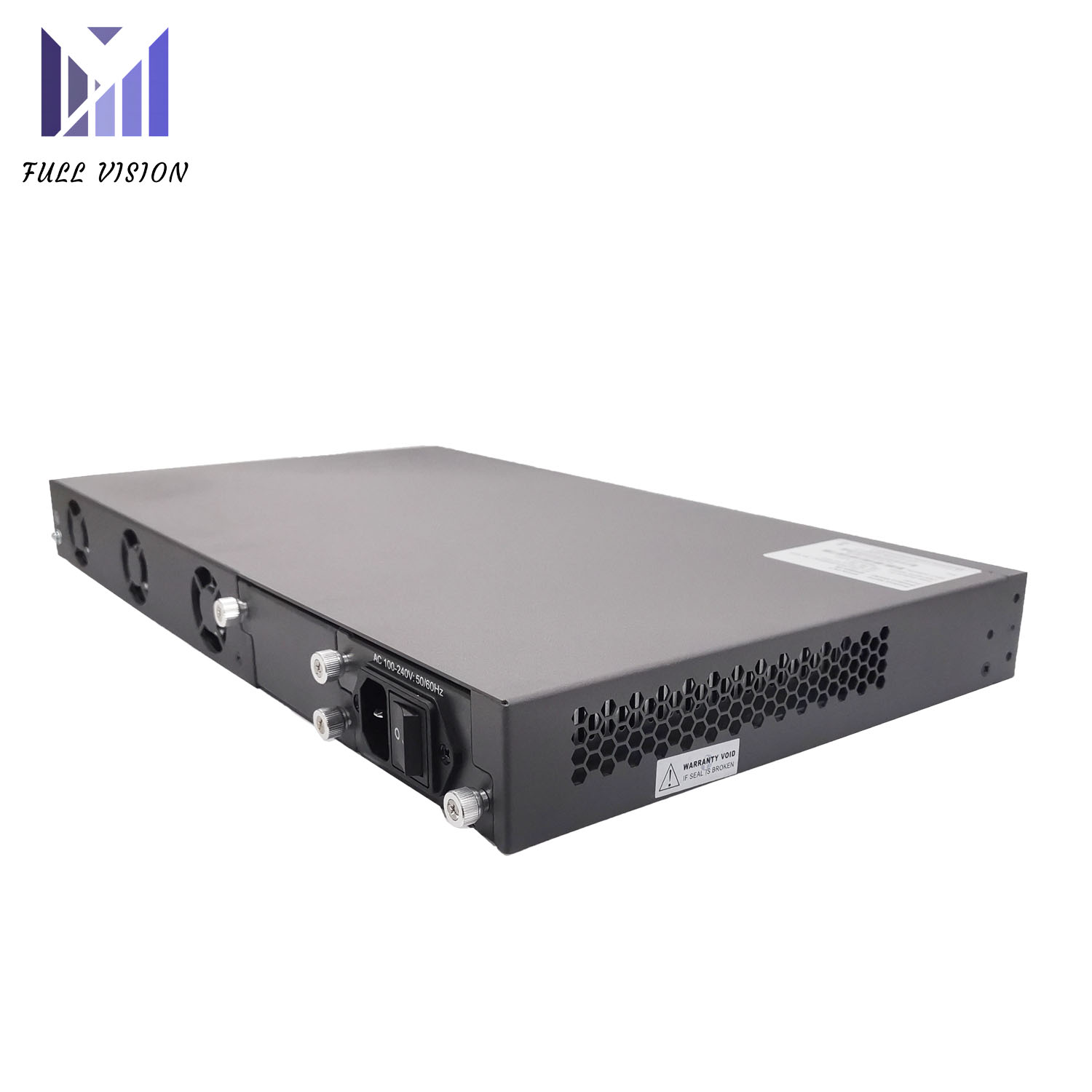

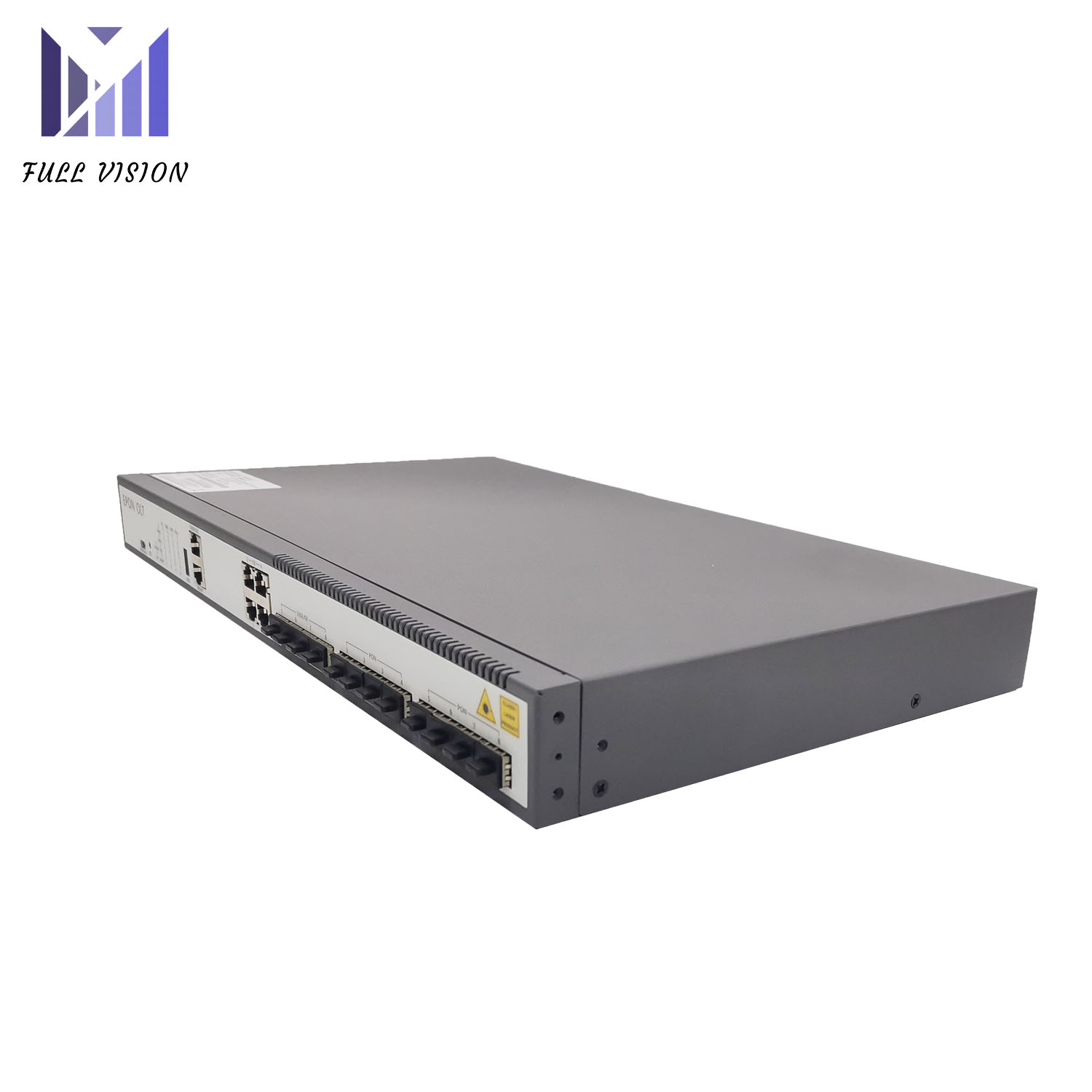

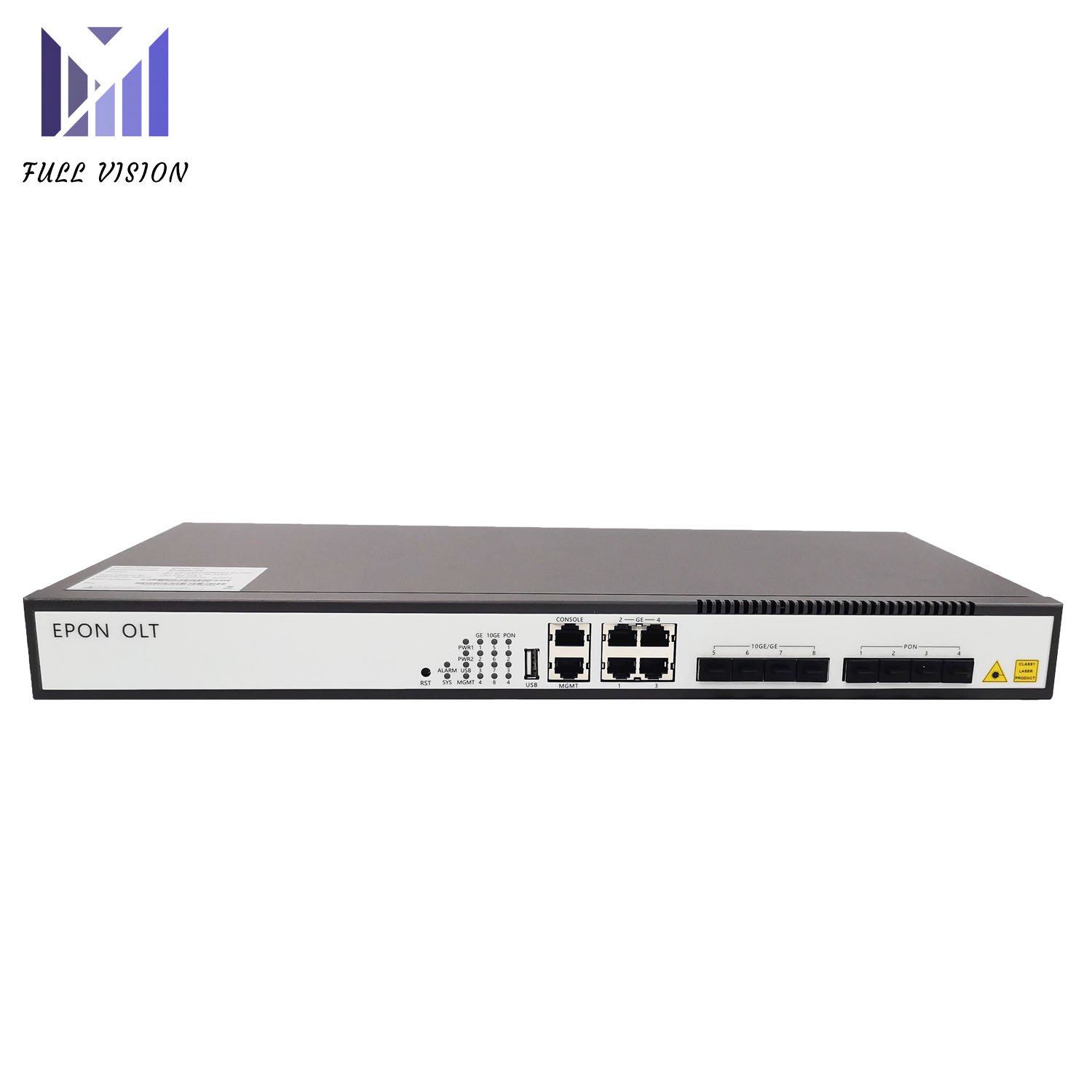

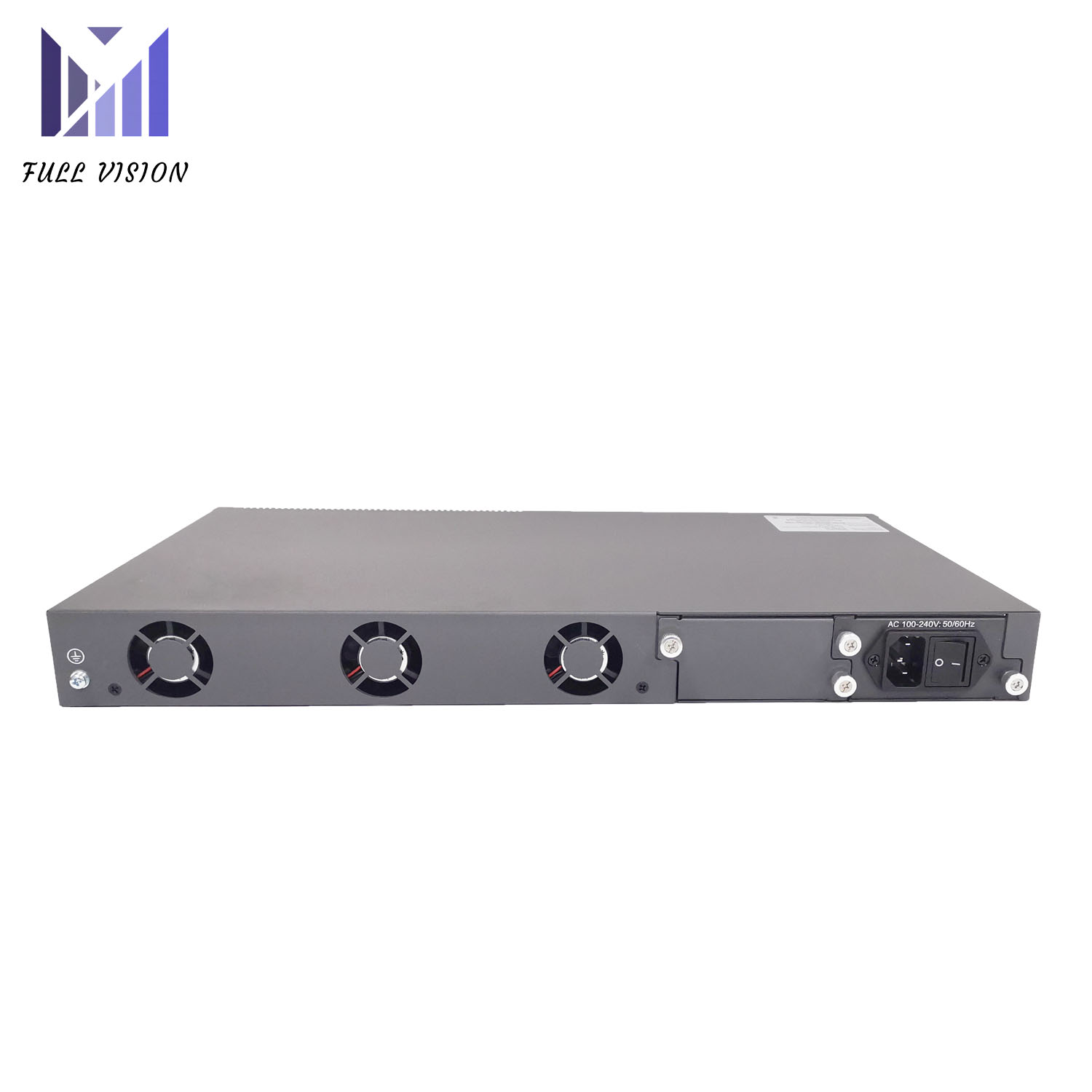

FV-L3004 is cassette EPON OLT, it can meeting the requirements of IEEE802.3ah and relative EPON standards of China Telecom/Unicom.

It is have high performance and small size, is convenient and flexible deployment.

The product meets the requirements of ISP/Enterprise network to improve network performance, improve reliability and reduce power consumption.

It is suitable for network applications with high cost performance, such as FTTH/FTTB network, video surveillance network and IoT.

Model No.	FV-L3004
PON Port	4
Up Link Port	4 x GE(RJ45 or SFP) + 2 x 10GE SFP+
Switching Capacity	63Gbps
Forwarding Capacity(Ipv4/Ipv6)	50Mpps
Redundancy Design	Dual power supply Support AC input, double DC input and AC+DC input
Power Supply	AC: input 90~264V¡¡47/63Hz DC: input -36V~-72V
Weight (Full-Loaded)	<=5kg
Dimensions	440mm(L) x380mm(W) x44mm(H)
Environmental Requirements	Working temperature: -10oC~55oC Storage temperature: -40oC~70oC Relative humidity: 10%~90%, non-condensing

Model No.	FV-L3004
PON Port	4
Up Link Port	4 x GE(RJ45 or SFP) + 2 x 10GE SFP+
Switching Capacity	63Gbps
Forwarding Capacity(Ipv4/Ipv6)	50Mpps
Redundancy Design	Dual power supply Support AC input, double DC input and AC+DC input
Power Supply	AC: input 90~264V¡¡47/63Hz DC: input -36V~-72V
Weight (Full-Loaded)	<=5kg
Dimensions(W x D x H)	440mmx44mmx380mm
Environmental Requirements	Working temperature: -10oC~55oC Storage temperature: -40oC~70oC Relative humidity: 10%~90%, non-condensing
