Model No.

FV-EA6T

AI Computing power

6TOPS

GPU

ARM Mali-G610 MC4 Graphics Processor

• Supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.2，Vulkan 1.2

Embedded high-performance 2D image acceleration module

CPU

8 core 64 bit architecture, 4 * Cortex-A76+4 * Cortex-A55

Memory

The memory specifications are 4GB/8GB/16GB

System storage

EMMC module: 0/32/64/128GB

TF card: Supports TF card startup/expansion, up to 512GB

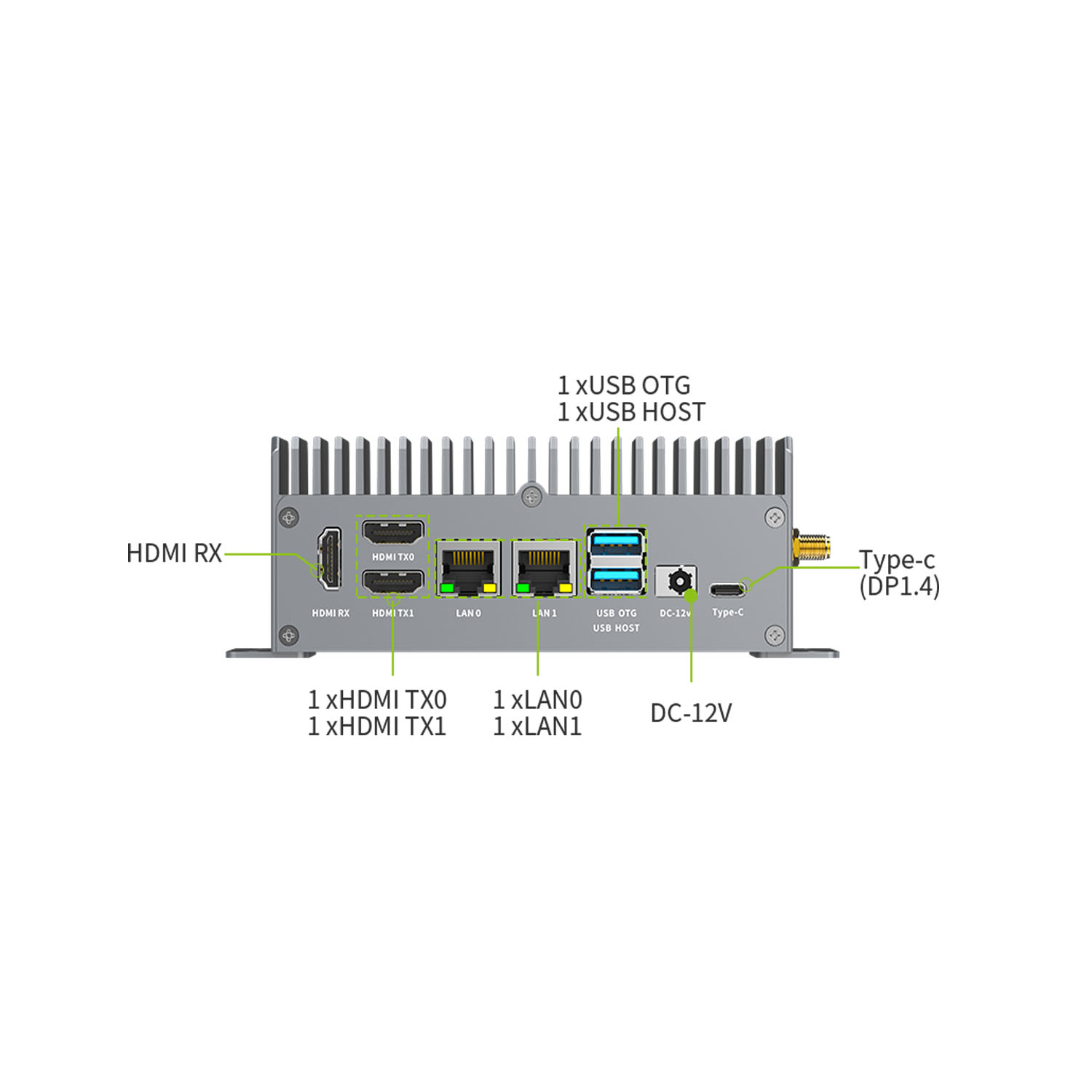

Ethernet

Gigabit * 2, onboard PHY chip JL2101B-N040C, supports 10/100/1000Mbps

USB

·1 x USB3.0 Type-A HOST

·1 x USB3.0 Type-A OTG

·2 x USB2.0 Type-A HOST

·1 x DP1.4/USB2.0 Type-C OTG, used for DP and burning

Video output

·1 x HDMI 2.0 interface, maximum support 4K@60Hz Input

·2 x HDMI 2.1 interfaces, maximum support 8K@60Hz output

Audio

2 xCAN 2.0b

RTC

Support RTC (default not included)

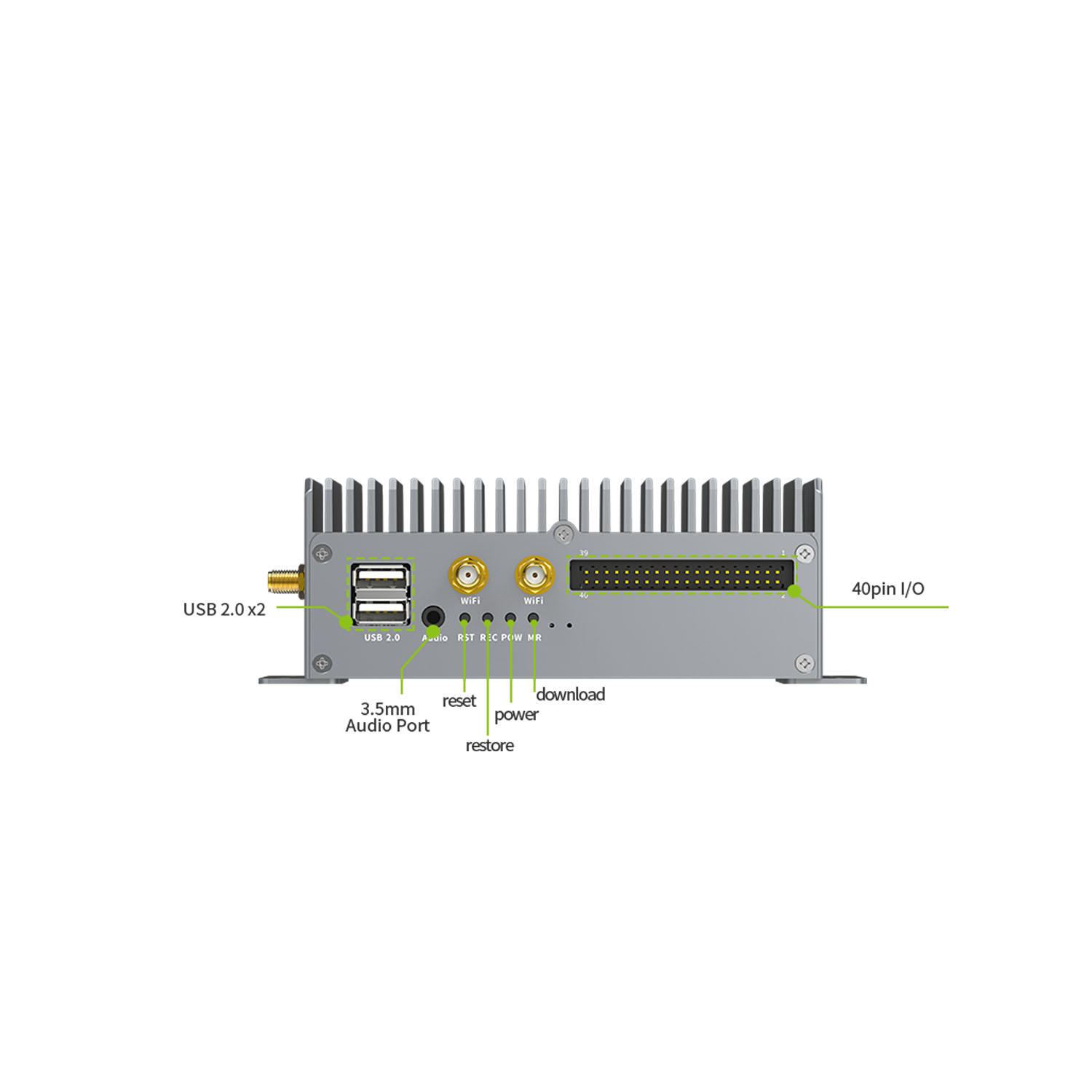

40Pin

Supports PWM, GPIO, I2C, SPI, UART functions

SIM card

Need to be used with compatible 4G/5G modules

TF card holder

Supports Micro SD (TF) card boot system, up to 512GB

M.2 Port

·1 x PCIe 2.0 * 1Lanes M.2 E KEY, supports wireless network card

·1 x PCIe 3.0 * 4Lanes M.2 M KEY, supporting M.2 solid-state drives

PCIe

Mini PCIe interface, used for 4G module

Key

1 x PWR (power on/off) button, 1 x MR (MaskRom) button

1 x REC (Recovery) button, 1 x RST (Reset) button
