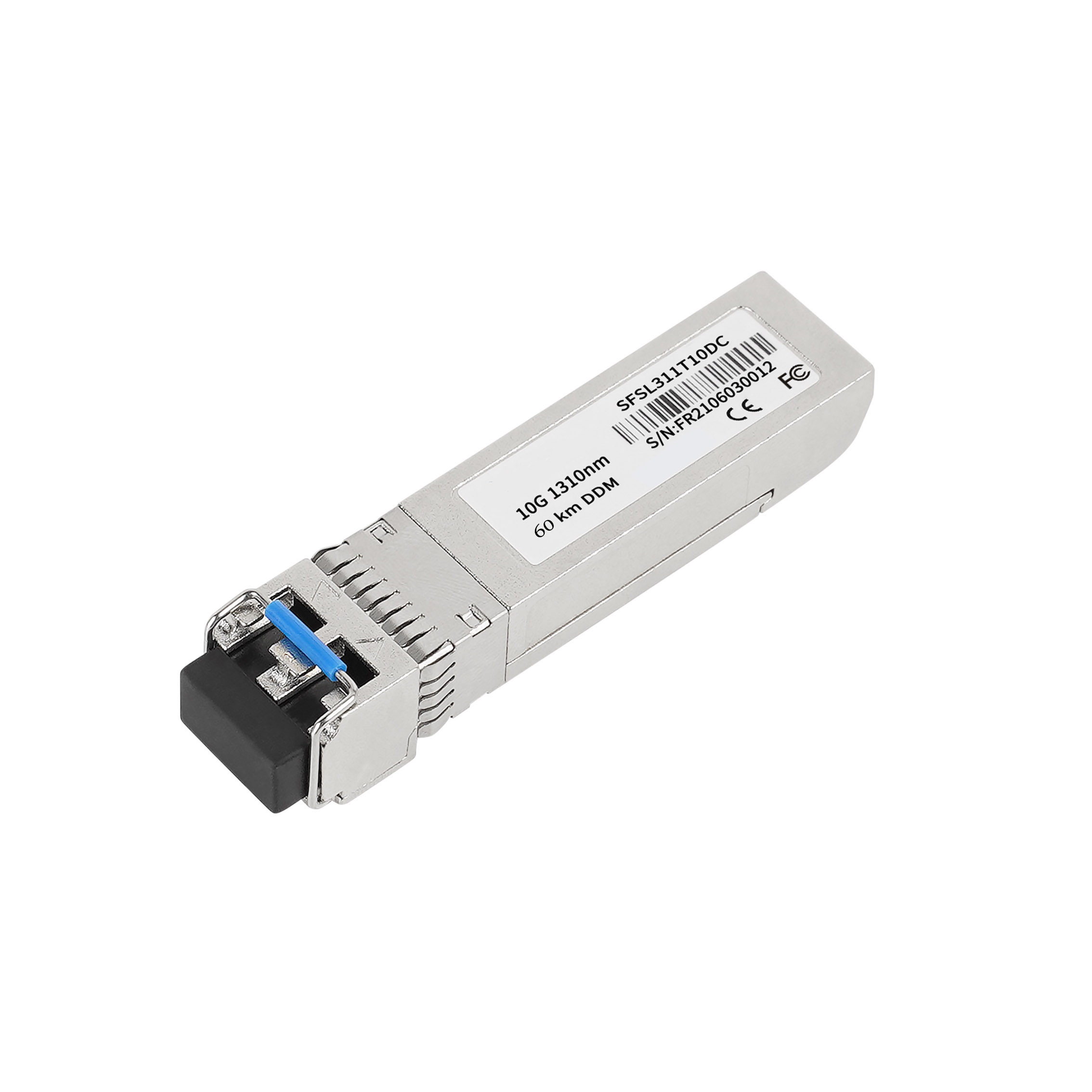

10.3Gbps SFP+ BIDI Transceiver, Single Mode, 60km Reach TX1270nm / RX1330nm (TX1330nm / RX1270nm) are hot pluggable 3.3V Small-Form-Factor transceiver modules. They are designed expressly for high-speed communication applications that require rates up to 11.3Gb/s, they are designed to be compliant with SFF-8472 SFP+ MSA. The module data link up to 60km in 9/125um single mode fiber.
Features:
lSupports up to 11.3Gbps bit rates
lHot-pluggable SFP+ footprint
l1270nm DFB laser and APD receiver ,
lUp to 60km for SMF transmission
lCompliant with SFP+ MSA and SFF-8472 with single LC receptacle
lCompatible with RoHS
lSingle +3.3V power supply
lPower dissipation<1.5W
l2-wire interface with integrated Digital Diagnostic monitoring
lEEPROM with Serial ID Functionality
lOperating case temperature: Standard: -5 to +70°C
Application
l10GBASE-BX
l10G SONET/SDH, OTU2/2e
STANDARD
lCompliant with SFF-8472
lCompliant to SFF-8431
Ordering information
|
Product Description |
|
TX1270/RX1330, 10Gbps, LC, 60km, -5°C~+70°C, with DDM |
|
TX1330/RX1270, 10Gbps, LC, 60km, -5°C~+70°C, with DDM |
|
TX1270/RX1330, 10Gbps, LC, 60km, -40°C~+85°C, with DDM |
|
TX1330/RX1270, 10Gbps, LC, 60km, -40°C~+85°C, with DDM |
