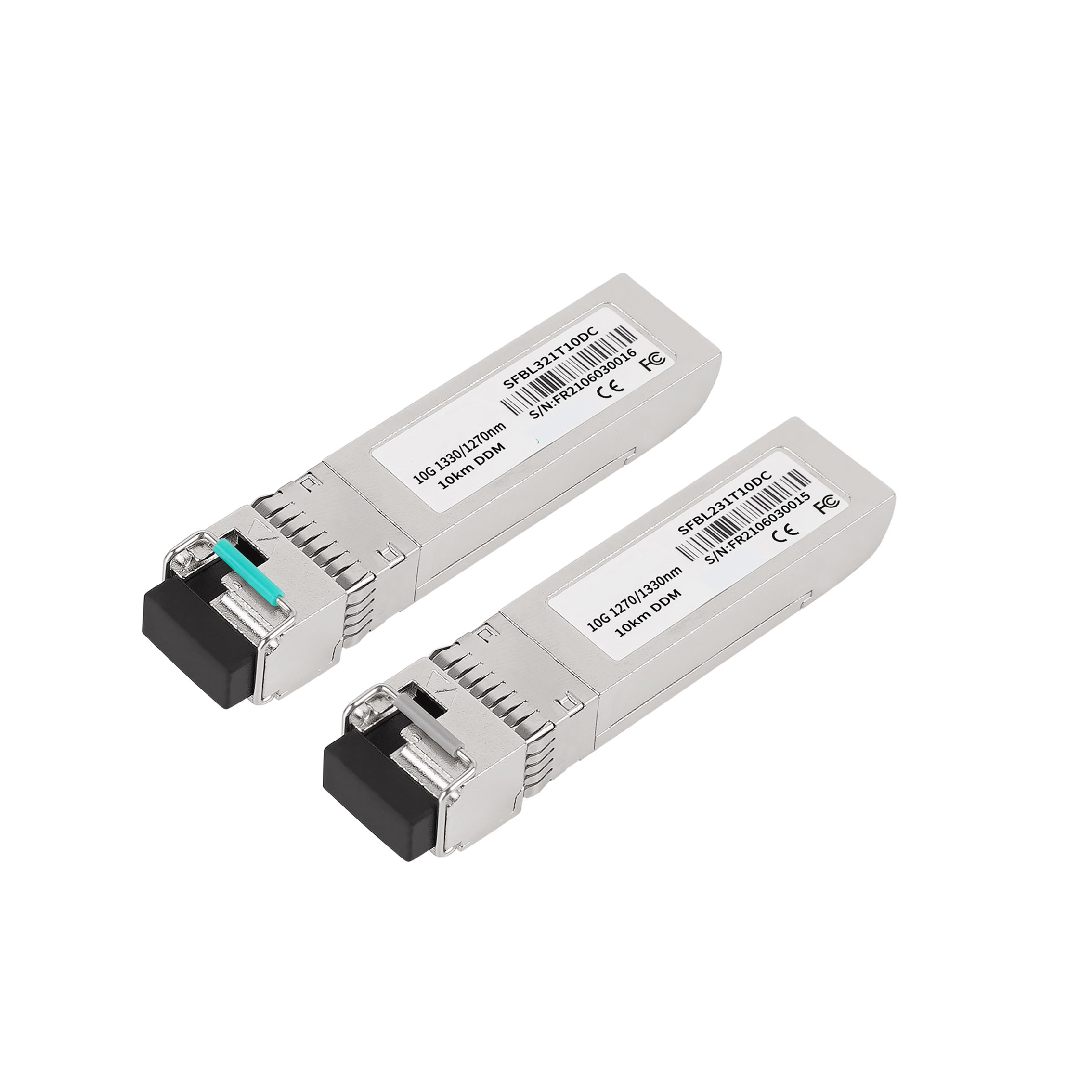

10G SFP+ LC 1270/1330nm 10km
10.3Gbps SFP+ BIDI Transceiver, Single Mode, 10km Reach TX1270nm / RX1330nm (TX1330nm / RX1270nm) are hot pluggable 3.3V Small-Form-Factor transceiver modules. They are designed expressly for high-speed communication applications that require rates up to 10.7Gbps,it designed to be compliant with SFF-8472 and SFP+ MSA. The module data link up to10km in 9/125um single mode fiber. The optical output can be disabled by a LVTTL logic high-level input of Tx Disable. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner.

Features:

lSupports up to 11.3Gbps bit rates

lHot-pluggable SFP+ footprint

l1270nm DFB laser and PIN receiver, 1330nm DFB laser and PIN receiver

lUp to 10km for SMF transmission

lCompliant with single LC receptacle

lCompatible with RoHS

lSingle +3.3V power supply

lPower dissipation<1.2W

l2-wire interface with integrated Digital Diagnostic monitoring

lEEPROM with Serial ID Functionality

lOperating case temperature:       Standard:  -5 to +70°C       Industrial: -40 to +85°C

Application

l10GBASE-BX at 10.3125 Gb/s

l10GBASE-BX at 9.953 Gb/s

STANDARD
lCompliant to SFF-8431

lCompliant with SFF-8472

lCompliant with SFP+ MSA

Ordering information

Product Description

TX1270/RX1330,  10Gbps,  LC,  10km,  -5°C~+70°C,  with DDM

TX1330/RX1270,  10Gbps,  LC,  10km,  -5°C~+70°C,  with DDM

TX1270/RX1330,  10Gbps,  LC,  10km,  -40°C~+85°C,  with DDM

TX1330/RX1270,  10Gbps,  LC,  10km,  -40°C~+85°C,  with DDM
